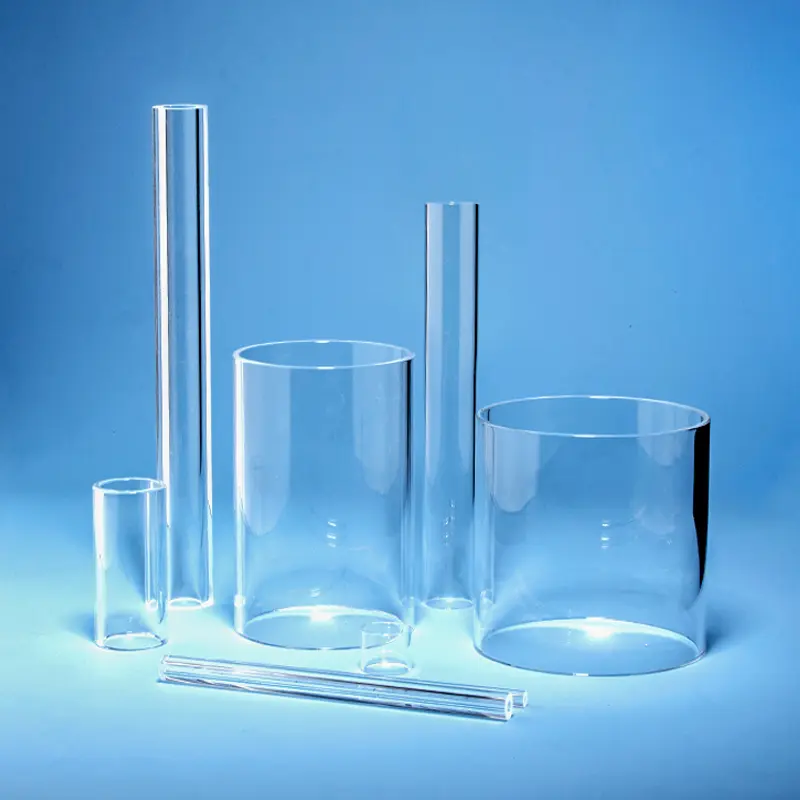

High-Purity & Custom Quartz Tubes

Aoxin Quartz specializes in manufacturing high-quality quartz tubes available in various grades, diameters, and wall thicknesses. Our quartz tubes offer exceptional thermal stability, high purity, and excellent optical transmission, making them ideal for demanding applications in semiconductor processing, industrial heating, lighting, and scientific research. We provide both standard stock sizes and fully customized tubes tailored to your precise specifications.

Request a Quote

Explore Products

High Thermal Stability

Low coefficient of thermal expansion provides excellent resistance to thermal shock. Usable at high temperatures (up to ~1100°C continuous)

High Purity

Minimal contaminants ensure process integrity, especially crucial for semiconductor applications.

Excellent Chemical Resistance

Inert to most acids and chemicals, ensuring long service life.

Superior Optical Properties

High transmission in UV, Visible, and IR spectrum (especially for clear fused silica).

Our Quartz Glass Products

We manufacture a wide range of quartz glass products available in various grades and dimensions, or fully customized to your specifications.

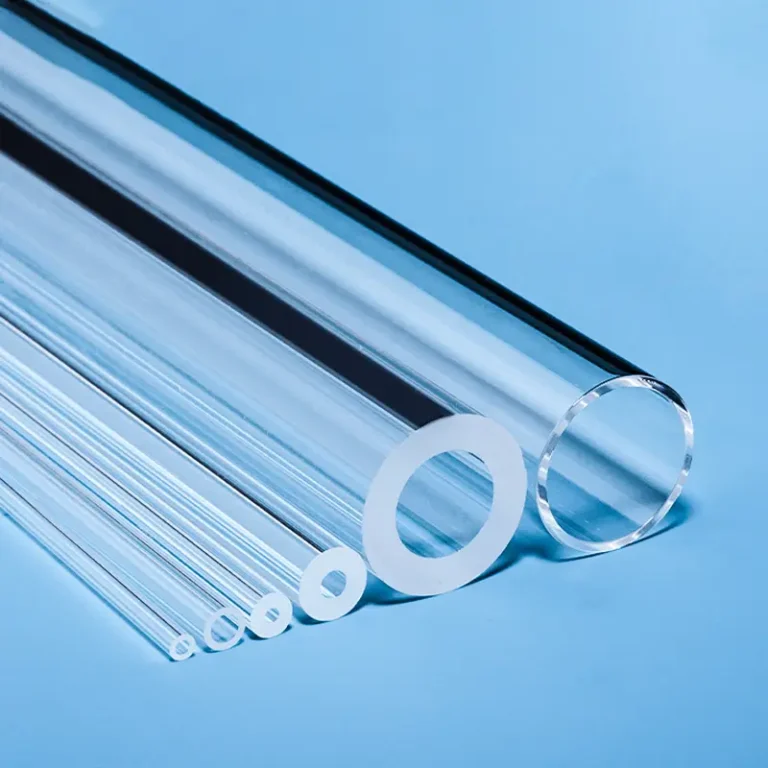

Quartz glass tubing

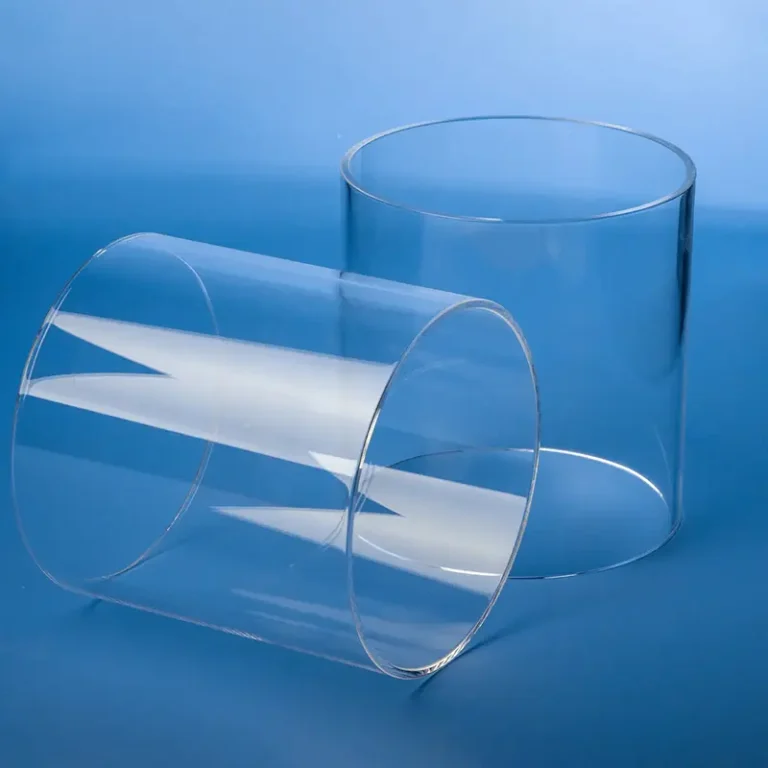

Large diameter quartz tube

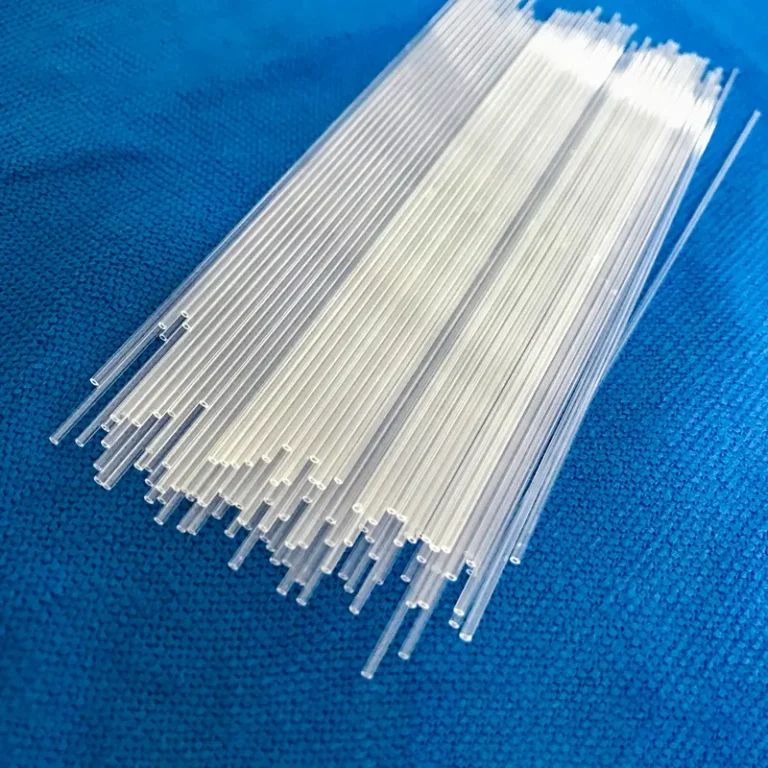

Quartz capillary tube

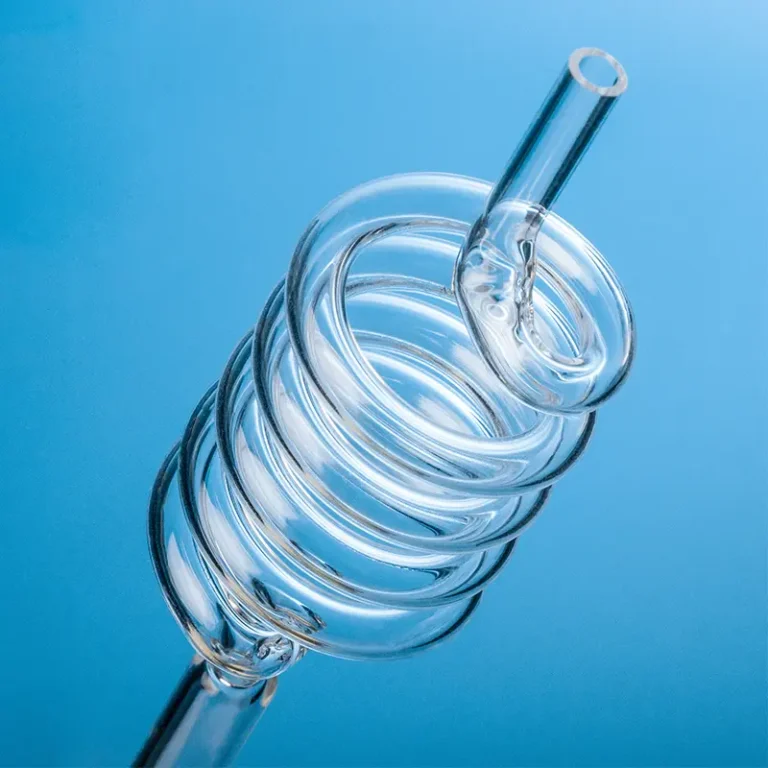

Quartz spiral tube

Opaque / Milky Quartz Tube

Quartz tube for tube furnace

Assortment of clear high purity quartz tubes in various diameters, with an example of an assembled quartz ozone generator cell.

Quartz Tube for Ozone Generators

Quartz tube for heater

Quartz glass test tube

Aoxin Quartz vacuum sealed tube with internal feature for column plug or pillar - Cover image

Vacuum sealed quartz glass tube

Uv quartz sleeve

Aoxin Quartz tubes for water level gauges, various diameters - Cover image

Quartz tube for water level gauge

1 2 Next »

Key Features & Benefits

Material Grades: Fused Quartz (Specify purity levels, e.g., 99.99%), Fused Silica (Synthetic), Opaque/Translucent Quartz.

Outer Diameter (OD): Standard ranges (e.g., 2mm – 300mm) and custom sizes available upon request.

Wall Thickness (WT) / Inner Diameter (ID): Wide range of standard wall thicknesses, precise custom WT/ID achievable.

Length: Standard lengths (e.g., 1000mm, 1200mm) and custom cut-to-length services.

End Finishes: Standard cut, Fire-polished, Ground, Flanged, Domed ends.

Tolerances: Standard and high-precision tolerances available (Specify typical tolerance ranges).

Technical Specifications (Typical Values)

Property	Value (Typical for Clear Fused Quartz)
Density	2.2 g/cm³
Purity (SiO2 content)	> 99.99%
Softening Point	Approx. 1680 °C
Annealing Point	Approx. 1180 °C
Coefficient of Thermal Expansion (20-300°C)	5.5 x 10⁻⁷ /°C
Transmission (UV – Visible – IR)	Excellent (Specific curve available

Note: These are typical values and may vary based on specific grade and manufacturing process.

Common Applications

Our quartz tubes are widely used across various industries, including

Semiconductor Processing (Furnace tubes, process chamber liners)

Industrial Heating Elements (Protection tubes)

Lighting (UV lamp envelopes, halogen lamps)

Fiber Optic Manufacturing (Preform handling)

Solar/Photovoltaic Industry

Chemical Processing

Laboratory Apparatus

Water Treatment (UV sterilization lamp sleeves)

AoXIN QUARTZ

Custom Quartz Tube Solutions

Beyond standard sizes, Aoxin Quartz excels in providing custom quartz tube solutions. We can manufacture tubes to your exact dimensions (OD, ID, WT, Length), tolerances, purity requirements, and unique features such as specific end finishes, holes, or slots. Our experienced team can work with your drawings or requirements to deliver the perfect quartz tube components for your application.

Related Services

We also offer complementary services for quartz tubes, including: Precision Cutting, Fire Polishing, Grinding, Forming/Bending (where applicable).

Frequently Asked Questions

Find answers to commonly asked questions about our products and services.

Are you a direct manufacturer or a distributor of quartz glass?

Aoxin Quartz is a direct manufacturer of quartz glass products. We handle the entire process from raw material selection (or sourcing) to final fabrication and quality control at our own facility located in China.

What grades/purity levels of quartz glass do you offer?

We offer various grades to meet different application needs, including standard purity fused quartz, high-purity fused quartz (e.g., for semiconductor applications), synthetic fused silica (JGS1, JGS2, JGS3 equivalents), and opaque quartz. Please specify your application or required purity level (e.g., SiO2 content > 99.99%) when requesting a quote.

Do you accept custom orders based on drawings? What is the process?

Yes, custom fabrication is a core part of our business. The typical process is:
1. You provide detailed drawings (e.g., CAD files like DWG, STEP) and specifications (material grade, tolerances, quantity).
2. Our engineering team reviews the feasibility and provides technical feedback if necessary.
3. We provide a formal quotation including price and estimated lead time.
4. Upon order confirmation, we proceed with manufacturing according to the approved drawings.
5. Quality inspection is performed before shipment.

Please send your drawings to [email protected] or use our quote request form.

What is your Minimum Order Quantity (MOQ)?

Our MOQ varies depending on the product type and complexity. For standard items like tubes or rods, we might have lower MOQs compared to highly customized precision components. Please contact our sales team with your specific requirements for details.

What is the typical lead time for custom and standard products?

Lead times depend on product complexity, quantity, and current production schedules. Standard items might ship within 7 days. Custom orders typically range from 1 to 4 weeks after drawing approval. We will provide a specific estimated lead time with your quote.

Can you provide material certifications or Certificates of Conformance (CoC)?

Yes, we can provide material certifications detailing the properties (like purity) and Certificates of Conformance upon request, confirming that the products meet the specified requirements and standards.

How can I get a quote? What information is needed?

The best way is to use the “Request a Quote” form on our website or email us at [email protected]. Please provide as much detail as possible:
1. Product type (tube, plate, rod, custom part, etc.)
2. Material grade/purity requirement
3. Dimensions and tolerances (drawings are preferred for custom parts)
4. Quantity needed
5. Application (helps us understand the context)
6. Your contact information

Do you provide samples?

Samples for standard materials or simple items may be available, sometimes at a cost depending on the item. For custom components, prototyping might be part of the development process. Please discuss your sample needs with our sales team.
