High Purity Semiconductor Quartz Components

Aoxin Quartz is a trusted manufacturer of ultra-high purity quartz components critical for semiconductor fabrication processes. We specialize in producing precision-engineered quartzware, including furnace tubes, boats, injectors, rings, tanks, windows, and custom parts. Utilizing select grades of fused quartz and fused silica, our components meet the demanding requirements of modern semiconductor manufacturing, offering exceptional purity, thermal stability, plasma resistance, and tight dimensional tolerances. Partner with us for reliable, high-performance quartz solutions that enhance yield and process control.

Request a Quote

Explore Products

High Thermal Stability

Low coefficient of thermal expansion provides excellent resistance to thermal shock. Usable at high temperatures (up to ~1100°C continuous)

High Purity

Minimal contaminants ensure process integrity, especially crucial for semiconductor applications.

Excellent Chemical Resistance

Inert to most acids and chemicals, ensuring long service life.

Superior Optical Properties

High transmission in UV, Visible, and IR spectrum (especially for clear fused silica).

Our Quartz Glass Products

We manufacture a wide range of quartz glass products available in various grades and dimensions, or fully customized to your specifications.

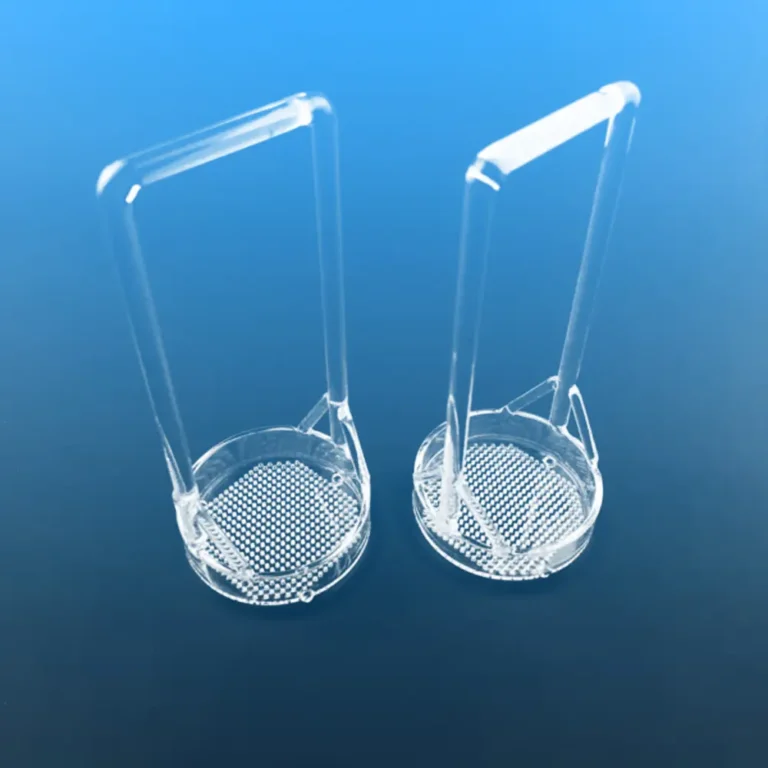

Pair of clear quartz wafer cleaning baskets with long handles and perforated bottoms

Quartz Wafer Carrier with Perforated Base and Handle / Quartz Dipping Basket

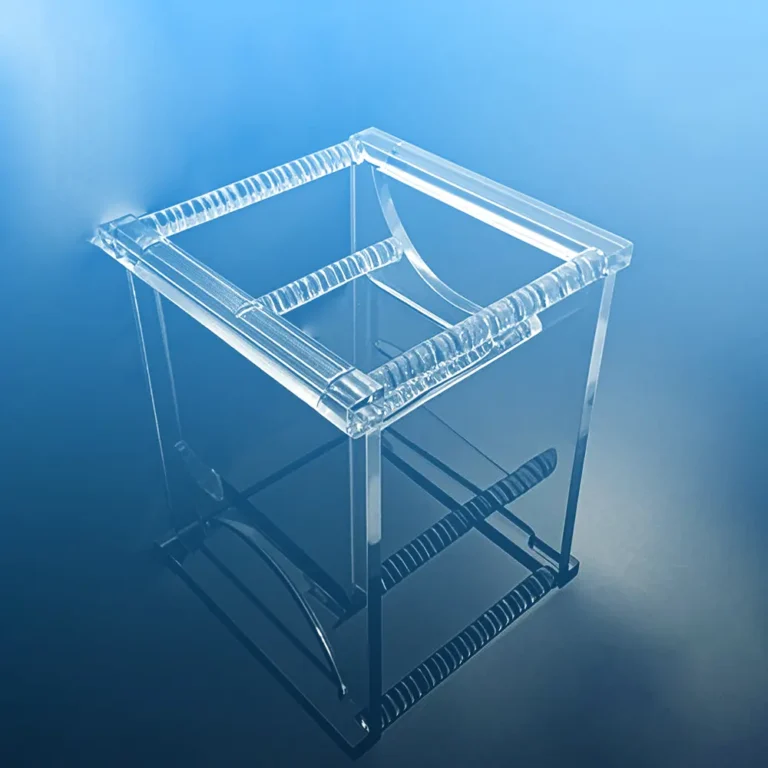

Front-angle view of a clear quartz wafer processing rack with multiple slots for silicon wafers

Quartz Wafer Cleaning Rack / Quartz Wafer Carrier

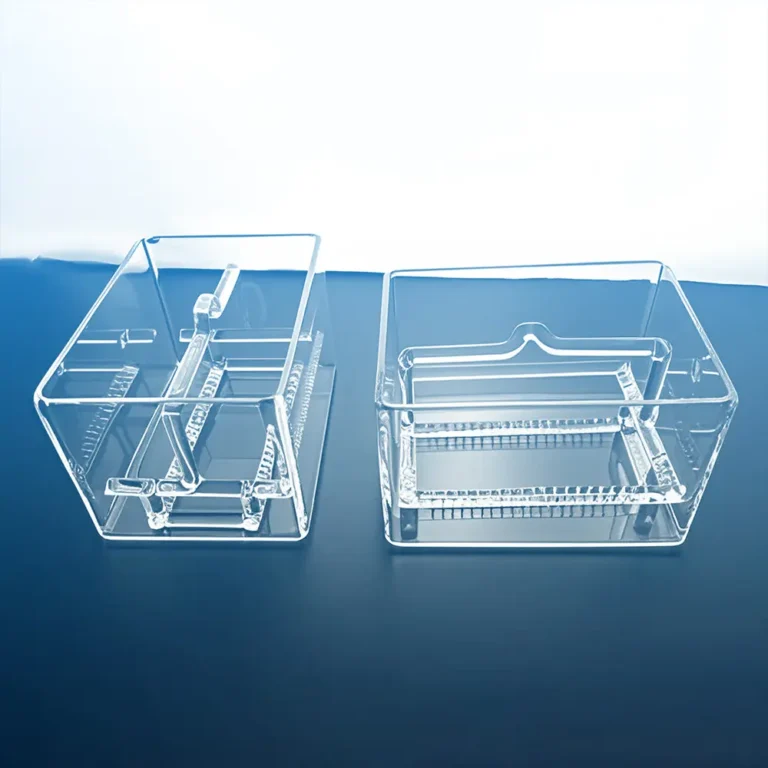

Clear quartz wafer cleaning tank and its removable inner slotted rack with handle, displayed separately

Quartz Wafer Cleaning Tank and Rack System / Quartz Wafer Wet Processing Bath

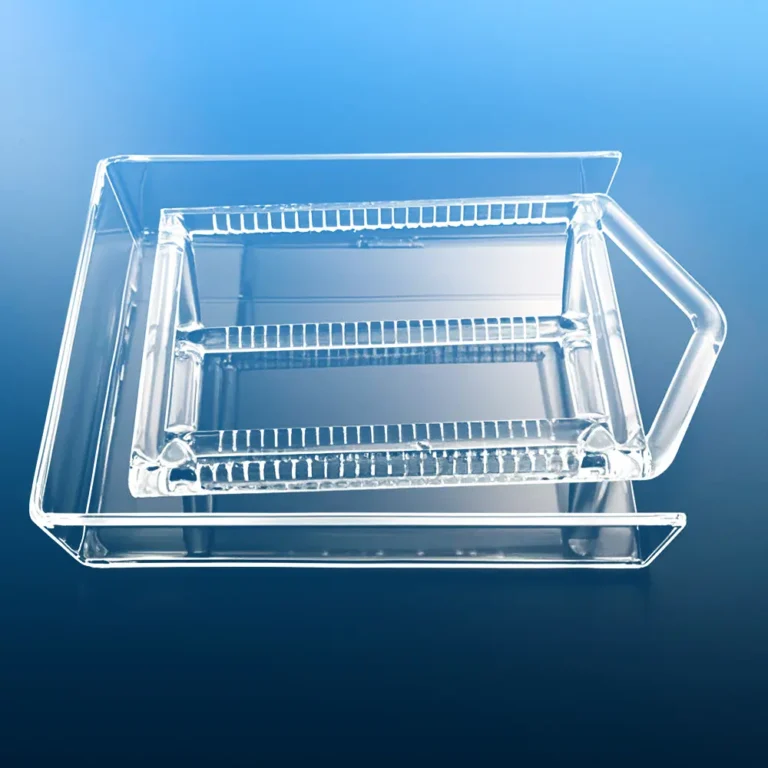

Top-angle view showing the parallel slots of the quartz boat within its carrier tray.

High Purity Slotted Quartz Boat with Carrier Tray/Box

Custom Quartz Boats and Boat Holders

Key Features & Benefits

Material Grades: Fused Quartz (Specify purity levels, e.g., 99.99%), Fused Silica (Synthetic), Opaque/Translucent Quartz.

Outer Diameter (OD): Standard ranges (e.g., 2mm – 300mm) and custom sizes available upon request.

Wall Thickness (WT) / Inner Diameter (ID): Wide range of standard wall thicknesses, precise custom WT/ID achievable.

Length: Standard lengths (e.g., 1000mm, 1200mm) and custom cut-to-length services.

End Finishes: Standard cut, Fire-polished, Ground, Flanged, Domed ends.

Tolerances: Standard and high-precision tolerances available (Specify typical tolerance ranges).

Technical Specifications (Typical Values)

Property	Value (Typical for Clear Fused Quartz)
Density	2.2 g/cm³
Purity (SiO2 content)	> 99.99%
Softening Point	Approx. 1680 °C
Annealing Point	Approx. 1180 °C
Coefficient of Thermal Expansion (20-300°C)	5.5 x 10⁻⁷ /°C
Transmission (UV – Visible – IR)	Excellent (Specific curve available

Note: These are typical values and may vary based on specific grade and manufacturing process.

Semiconductor Process Applications

Our quartz components are integral to numerous semiconductor fabrication steps

Semiconductor Processing (Furnace tubes, process chamber liners)

Industrial Heating Elements (Protection tubes)

Lighting (UV lamp envelopes, halogen lamps)

Fiber Optic Manufacturing (Preform handling)

Solar/Photovoltaic Industry

Chemical Processing

Laboratory Apparatus

Water Treatment (UV sterilization lamp sleeves)

AoXIN QUARTZ

Custom Fabrication & Engineering Support

Aoxin Quartz excels in custom manufacturing complex semiconductor quartz components. We have extensive experience working from customer drawings (OEM/ODM) and specifications. Our capabilities include:

· Multi-axis CNC machining for complex shapes.
· Precision grinding and polishing.
· Advanced quartz joining and sealing techniques (where applicable).
· Tight tolerance manufacturing.
· Engineering support for design optimization (DFM – Design for Manufacturing).

Related Services

We also offer value-added services for semiconductor quartzware: High-Purity Cleaning & Packaging, Quartz Component Repair & Refurbishment , Annealing & Thermal Treatment.

Frequently Asked Questions

Find answers to commonly asked questions about our products and services.

Are you a direct manufacturer or a distributor of quartz glass?

Aoxin Quartz is a direct manufacturer of quartz glass products. We handle the entire process from raw material selection (or sourcing) to final fabrication and quality control at our own facility located in China.

What grades/purity levels of quartz glass do you offer?

We offer various grades to meet different application needs, including standard purity fused quartz, high-purity fused quartz (e.g., for semiconductor applications), synthetic fused silica (JGS1, JGS2, JGS3 equivalents), and opaque quartz. Please specify your application or required purity level (e.g., SiO2 content > 99.99%) when requesting a quote.

Do you accept custom orders based on drawings? What is the process?

Yes, custom fabrication is a core part of our business. The typical process is:
1. You provide detailed drawings (e.g., CAD files like DWG, STEP) and specifications (material grade, tolerances, quantity).
2. Our engineering team reviews the feasibility and provides technical feedback if necessary.
3. We provide a formal quotation including price and estimated lead time.
4. Upon order confirmation, we proceed with manufacturing according to the approved drawings.
5. Quality inspection is performed before shipment.

Please send your drawings to [email protected] or use our quote request form.

What is your Minimum Order Quantity (MOQ)?

Our MOQ varies depending on the product type and complexity. For standard items like tubes or rods, we might have lower MOQs compared to highly customized precision components. Please contact our sales team with your specific requirements for details.

What is the typical lead time for custom and standard products?

Lead times depend on product complexity, quantity, and current production schedules. Standard items might ship within 7 days. Custom orders typically range from 1 to 4 weeks after drawing approval. We will provide a specific estimated lead time with your quote.

Can you provide material certifications or Certificates of Conformance (CoC)?

Yes, we can provide material certifications detailing the properties (like purity) and Certificates of Conformance upon request, confirming that the products meet the specified requirements and standards.

How can I get a quote? What information is needed?

The best way is to use the “Request a Quote” form on our website or email us at [email protected]. Please provide as much detail as possible:
1. Product type (tube, plate, rod, custom part, etc.)
2. Material grade/purity requirement
3. Dimensions and tolerances (drawings are preferred for custom parts)
4. Quantity needed
5. Application (helps us understand the context)
6. Your contact information

Do you provide samples?

Samples for standard materials or simple items may be available, sometimes at a cost depending on the item. For custom components, prototyping might be part of the development process. Please discuss your sample needs with our sales team.
