High Purity Quartz Furnace Tubes & Accessories

Aoxin Quartz specializes in manufacturing high-purity quartz furnace tubes and related accessories for high-temperature processing, research, and industrial applications. Our quartz tubes, fabricated from premium fused quartz or fused silica, provide exceptional performance in demanding thermal environments. They offer excellent thermal stability, high purity to prevent contamination, resistance to thermal shock, and good optical transparency. Ideal for semiconductor processing, material synthesis, annealing, diffusion, and controlled atmosphere experiments. We provide standard sizes and extensive custom fabrication capabilities.

Request a Quote

Explore Products

High Thermal Stability

Low coefficient of thermal expansion provides excellent resistance to thermal shock. Usable at high temperatures (up to ~1100°C continuous)

High Purity

Minimal contaminants ensure process integrity, especially crucial for semiconductor applications.

Excellent Chemical Resistance

Inert to most acids and chemicals, ensuring long service life.

Superior Optical Properties

High transmission in UV, Visible, and IR spectrum (especially for clear fused silica).

Our Quartz Furnace Tube Products

We manufacture a range of essential components for furnace systems

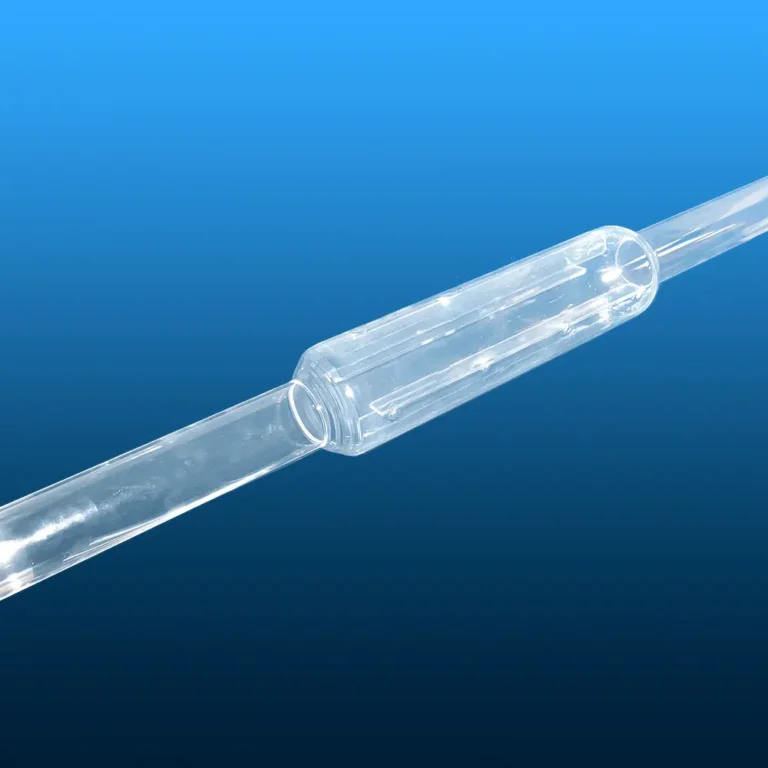

Quartz Tube for Rotary Tube Furnaces

High Purity Quartz Microcrucible for Trace Analysis & TGA

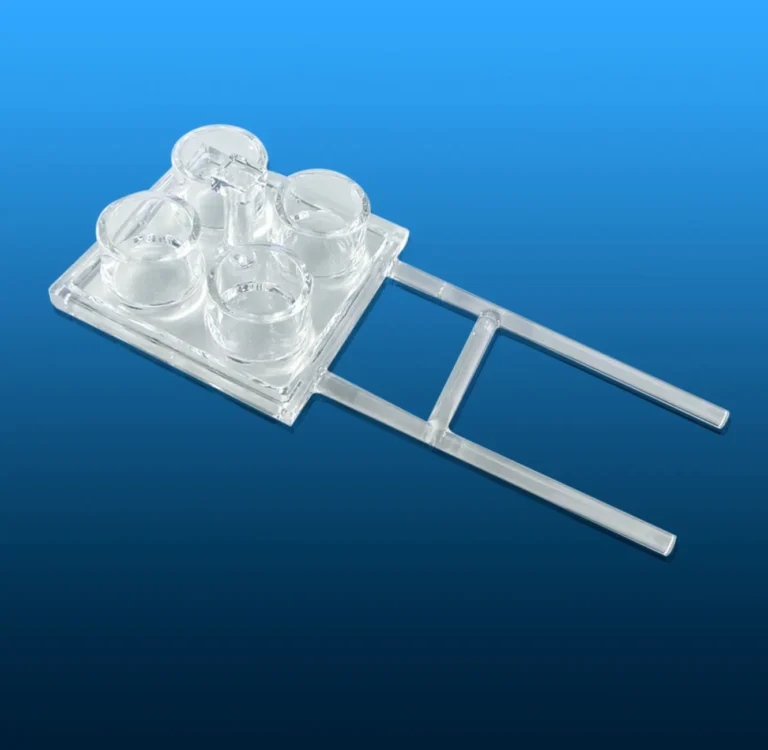

Quartz Sample Stage with 4 Cavities or 8 Cavities

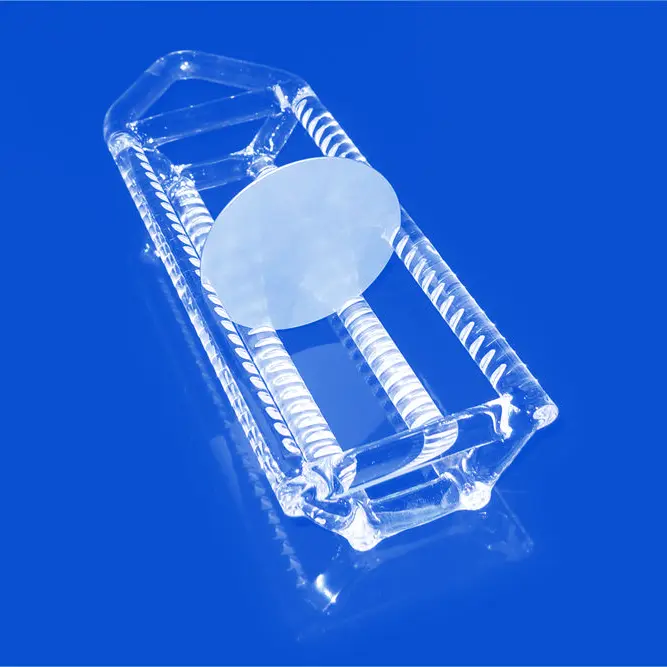

Quartz Wafer Boat

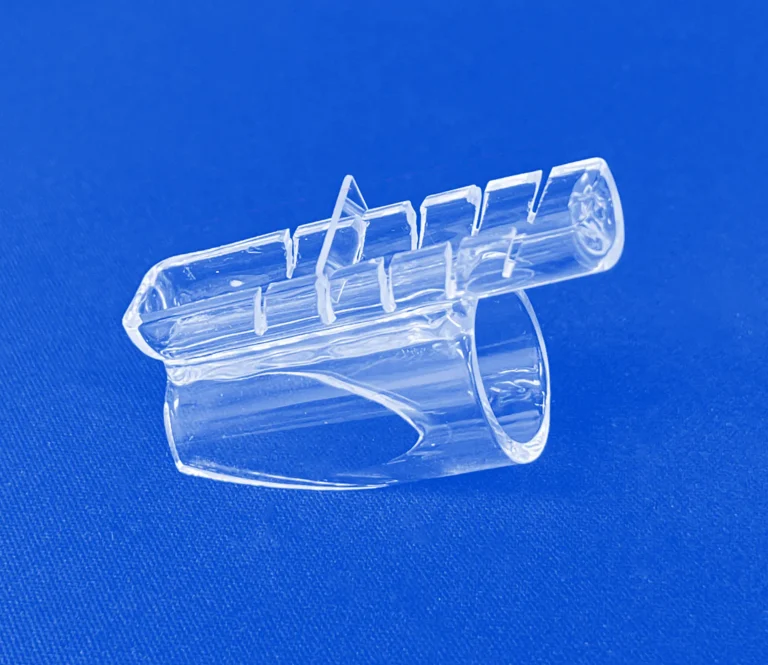

Quartz Boat for Annealing 8 to 10 mm Substrates

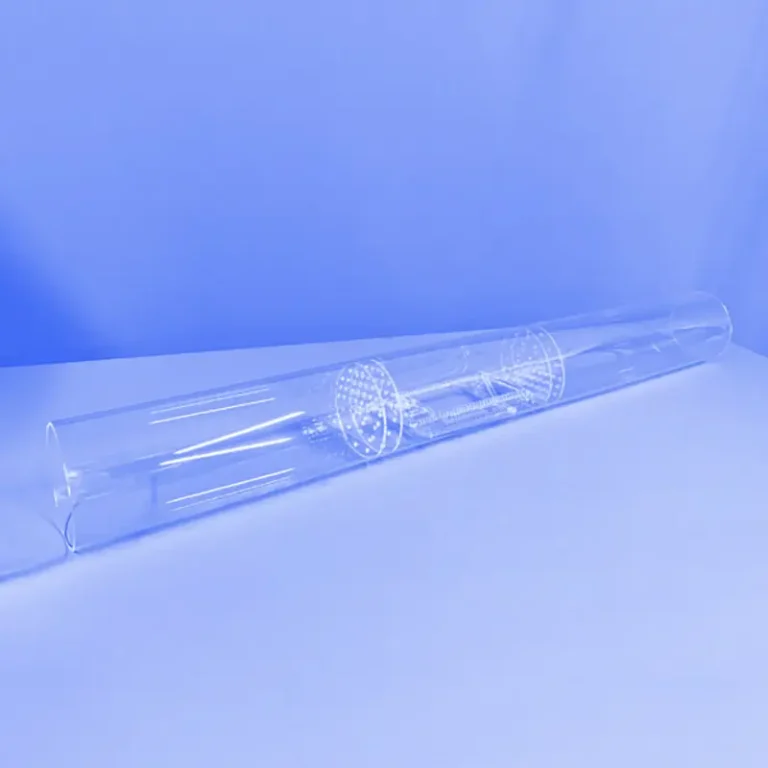

Quartz Gas Diffuser for 50/60/80/90/100/120/250mm Furnace Tubes

Quartz tube for tube furnace

« Previous 1 2

Key Features & Benefits

Material Grades: Fused Quartz (Specify purity levels, e.g., 99.99%), Fused Silica (Synthetic), Opaque/Translucent Quartz.

Outer Diameter (OD): Standard ranges (e.g., 2mm – 300mm) and custom sizes available upon request.

Wall Thickness (WT) / Inner Diameter (ID): Wide range of standard wall thicknesses, precise custom WT/ID achievable.

Length: Standard lengths (e.g., 1000mm, 1200mm) and custom cut-to-length services.

End Finishes: Standard cut, Fire-polished, Ground, Flanged, Domed ends.

Tolerances: Standard and high-precision tolerances available (Specify typical tolerance ranges).

Technical Specifications (Typical Values)

Property	Value (Typical for Clear Fused Quartz)
Density	2.2 g/cm³
Purity (SiO2 content)	> 99.99%
Softening Point	Approx. 1680 °C
Annealing Point	Approx. 1180 °C
Coefficient of Thermal Expansion (20-300°C)	5.5 x 10⁻⁷ /°C
Transmission (UV – Visible – IR)	Excellent (Specific curve available

Note: These are typical values and may vary based on specific grade and manufacturing process.

Common Applications

Aoxin quartz furnace tubes are widely used in

Semiconductor wafer processing (diffusion, oxidation, LPCVD)

Materials science research (annealing, sintering, crystal growth)

Chemical Vapor Deposition (CVD) systems

High-temperature material testing and analysis

Pyrolysis and combustion experiments

Controlled atmosphere (inert, reducing, oxidizing) reactions

Purification processes

Horizontal and vertical tube furnaces

AoXIN QUARTZ

Custom Quartz Furnace Tube Fabrication

Beyond standard sizes, Aoxin Quartz excels in custom fabrication. We can produce furnace tubes and accessories tailored to your exact specifications. This includes：

Custom lengths, diameters, and wall thicknesses

Specific end finishes (e.g., fire-polished, ground, flared)

Addition of side arms, ports, or thermocouple wells

Integration of standard taper joints, ball joints, or custom flanges

Tubes with specific optical properties or coatings (if applicable)

Complex furnace reactor designs

Related Services

Consider also our range of Quartz Labware (beakers, crucibles, boats) often used in conjunction with furnace systems. We also offer Custom Quartz Fabrication for other apparatus and potentially Quartz Repair Services for certain components.

Frequently Asked Questions

Find answers to commonly asked questions about our products and services.

Are you a direct manufacturer or a distributor of quartz glass?

Aoxin Quartz is a direct manufacturer of quartz glass products. We handle the entire process from raw material selection (or sourcing) to final fabrication and quality control at our own facility located in China.

What grades/purity levels of quartz glass do you offer?

We offer various grades to meet different application needs, including standard purity fused quartz, high-purity fused quartz (e.g., for semiconductor applications), synthetic fused silica (JGS1, JGS2, JGS3 equivalents), and opaque quartz. Please specify your application or required purity level (e.g., SiO2 content > 99.99%) when requesting a quote.

Do you accept custom orders based on drawings? What is the process?

Yes, custom fabrication is a core part of our business. The typical process is:
1. You provide detailed drawings (e.g., CAD files like DWG, STEP) and specifications (material grade, tolerances, quantity).
2. Our engineering team reviews the feasibility and provides technical feedback if necessary.
3. We provide a formal quotation including price and estimated lead time.
4. Upon order confirmation, we proceed with manufacturing according to the approved drawings.
5. Quality inspection is performed before shipment.

Please send your drawings to [email protected] or use our quote request form.

What is your Minimum Order Quantity (MOQ)?

Our MOQ varies depending on the product type and complexity. For standard items like tubes or rods, we might have lower MOQs compared to highly customized precision components. Please contact our sales team with your specific requirements for details.

What is the typical lead time for custom and standard products?

Lead times depend on product complexity, quantity, and current production schedules. Standard items might ship within 7 days. Custom orders typically range from 1 to 4 weeks after drawing approval. We will provide a specific estimated lead time with your quote.

Can you provide material certifications or Certificates of Conformance (CoC)?

Yes, we can provide material certifications detailing the properties (like purity) and Certificates of Conformance upon request, confirming that the products meet the specified requirements and standards.

How can I get a quote? What information is needed?

The best way is to use the “Request a Quote” form on our website or email us at [email protected]. Please provide as much detail as possible:
1. Product type (tube, plate, rod, custom part, etc.)
2. Material grade/purity requirement
3. Dimensions and tolerances (drawings are preferred for custom parts)
4. Quantity needed
5. Application (helps us understand the context)
6. Your contact information

Do you provide samples?

Samples for standard materials or simple items may be available, sometimes at a cost depending on the item. For custom components, prototyping might be part of the development process. Please discuss your sample needs with our sales team.
