High-Temperature Quartz Atomizing Spray Nozzle (6mm Body) – Model TQ6D

1200°C High Temp Resistant

High Transmittance

Acid/Alkali Resistant

Complete Specifications

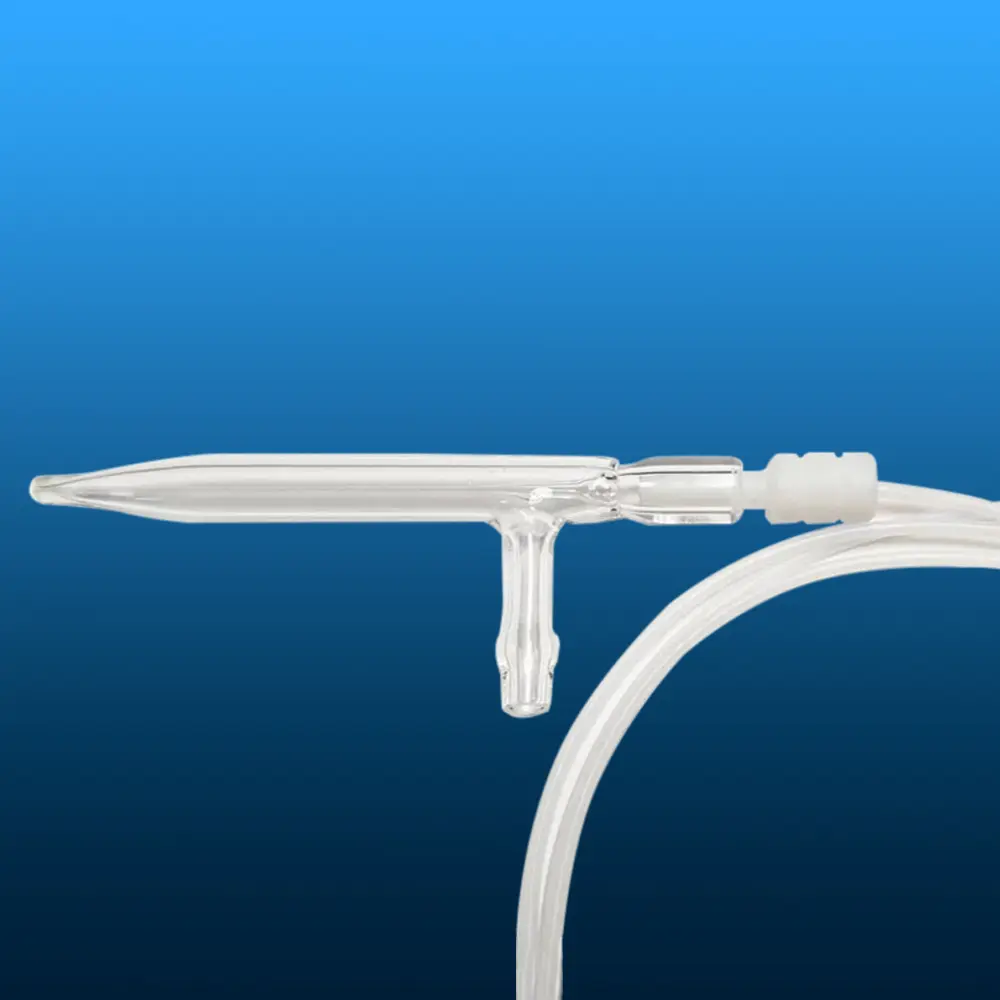

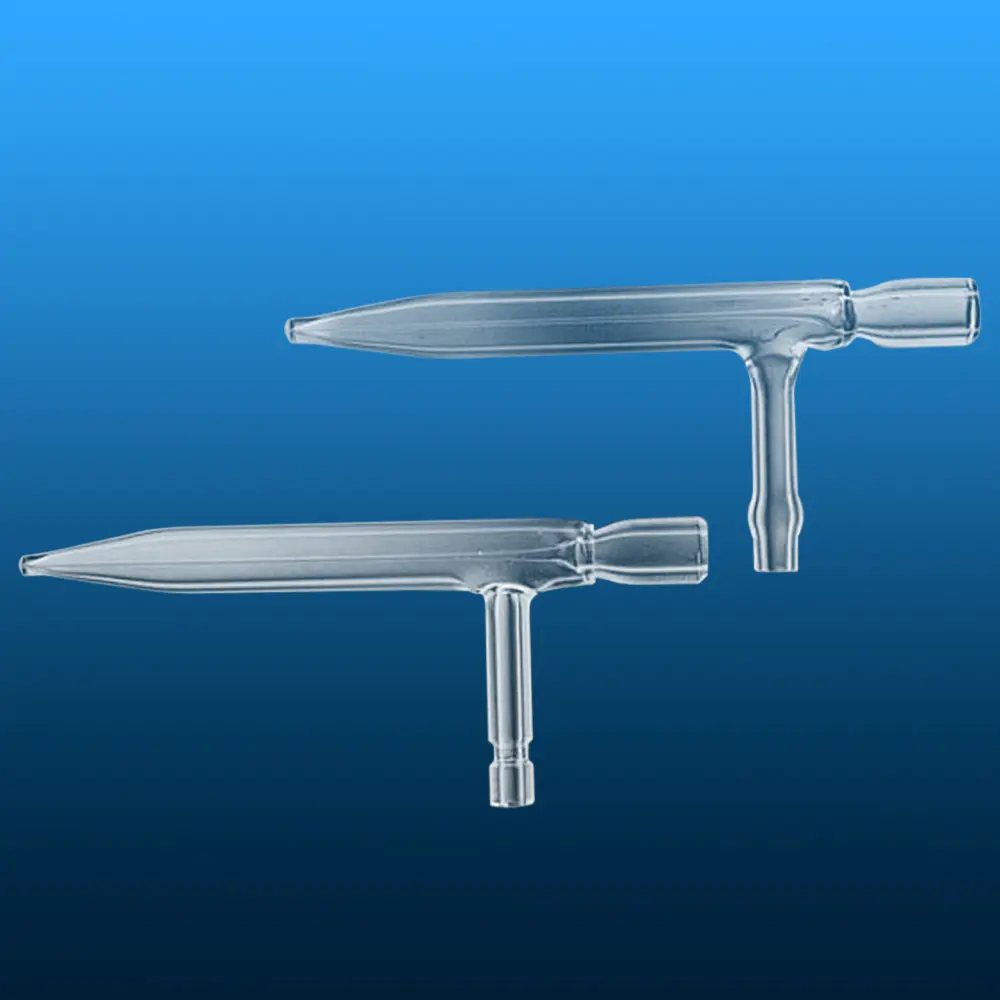

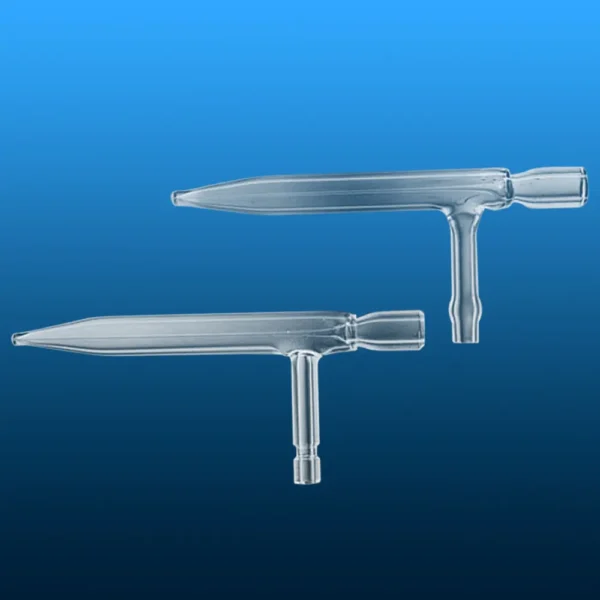

Aoxin Quartz offers the TQ6D High-Temperature Quartz Atomizing Spray Nozzle, designed for generating fine mists or sprays of liquids in various high-temperature processes up to 1100°C. This nozzle is precision-crafted from high-purity quartz tubing (6mm main body diameter) and features dedicated inlets for compressed gas and liquid (4mm OD). It can achieve liquid atomization at gas pressures up to 0.2 MPa, often without the need for a separate liquid pump. The TQ6D nozzle is ideal for applications such as spray pyrolysis, chemical vapor deposition (CVD), material synthesis, and surface coating where controlled atomization at high temperatures is required. Each nozzle comes with a plastic connector and PTFE tubing for the liquid inlet and is securely packaged.

• Product Name : Quartz Atomizing Spray Nozzle
• Material : 99.99 % Purity Quartz
• Work Temperature ：~1200℃
• Soften point : ~1730℃
• Hardness :  5.5 – 6.5 Mohs’ Scale 570 KHN 100
• Tensile Strength : 4.8×10⁷ Pa (N/mm2) (7000 psi)
• Compression Strength : >1.1×10⁹ Pa (160,000 psi)

• High-Temperature Operation: Capable of sustained operation at temperatures up to 1100°C, making it suitable for demanding thermal spray processes.
• Superior Chemical Resistance: High-purity quartz construction ensures excellent resistance to corrosive liquids and gases.

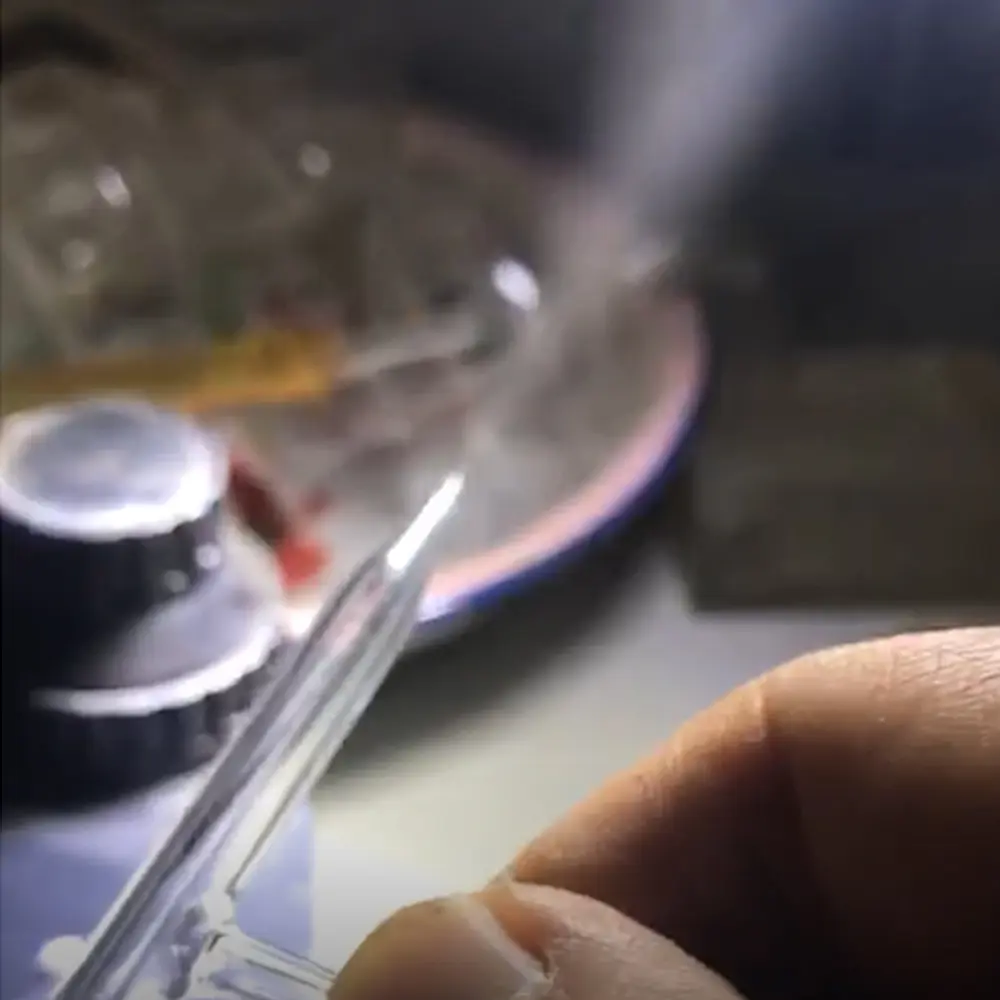

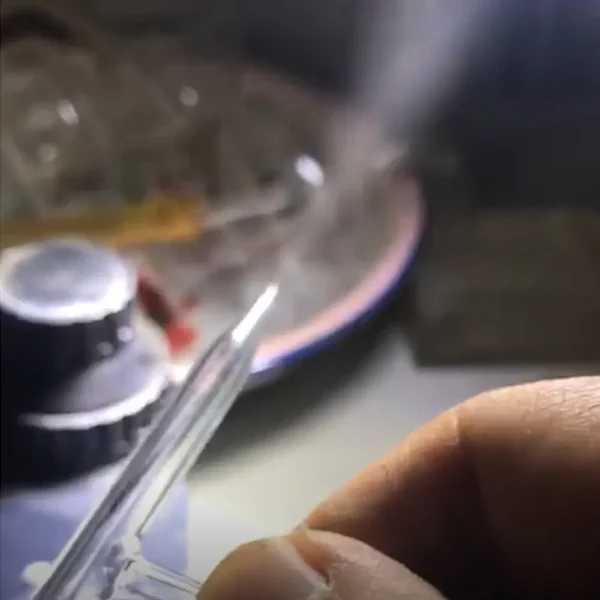

• Efficient Atomization: Designed to produce a fine, consistent spray with compressed gas (up to 0.2 MPa), facilitating uniform coating or reaction.
• Pump-Free Liquid Feed Option: Can often atomize liquids fed by gravity or slight pressure without requiring a dedicated liquid pump.
• Durable & Pure Material: Quartz provides a robust and contamination-free pathway for liquids and gases.
• Precision Design: Engineered with specific inlet dimensions (4mm OD liquid inlet, 4mm OD gas inlet, 6mm main body) for reliable performance and integration into experimental or production setups.

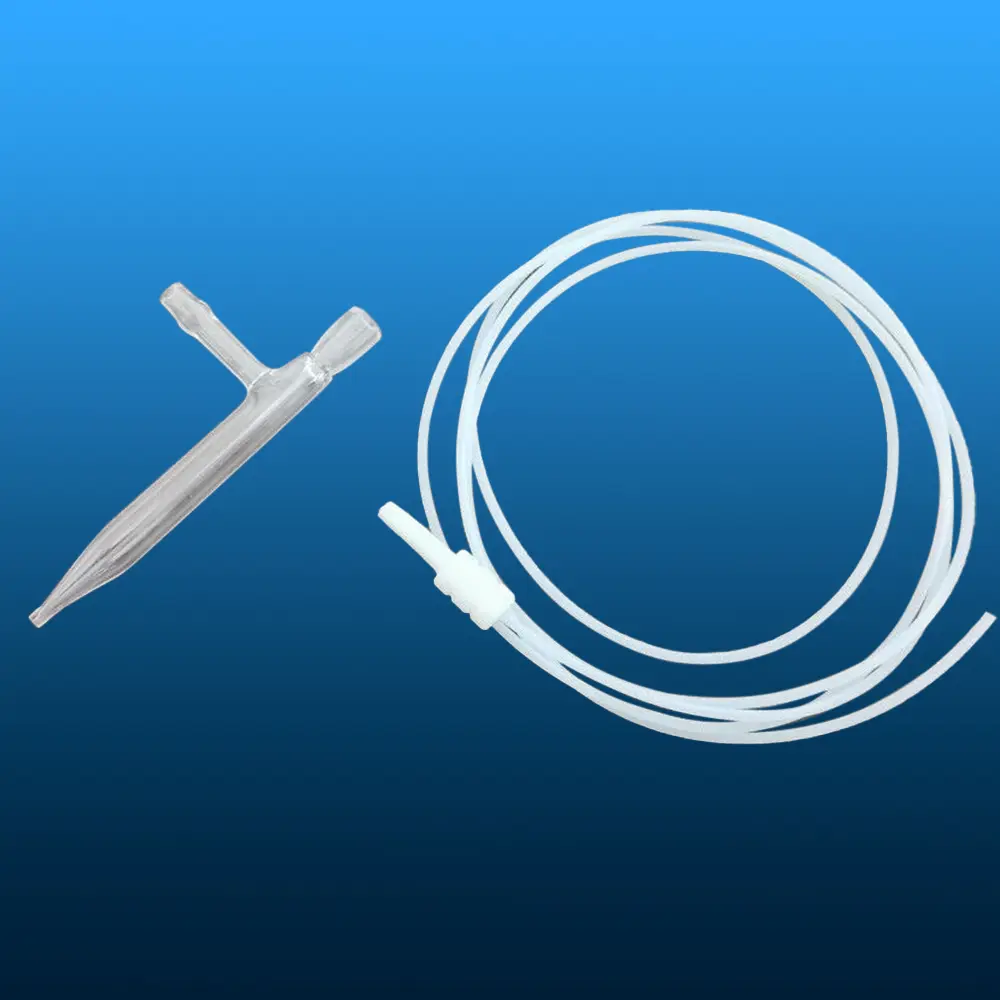

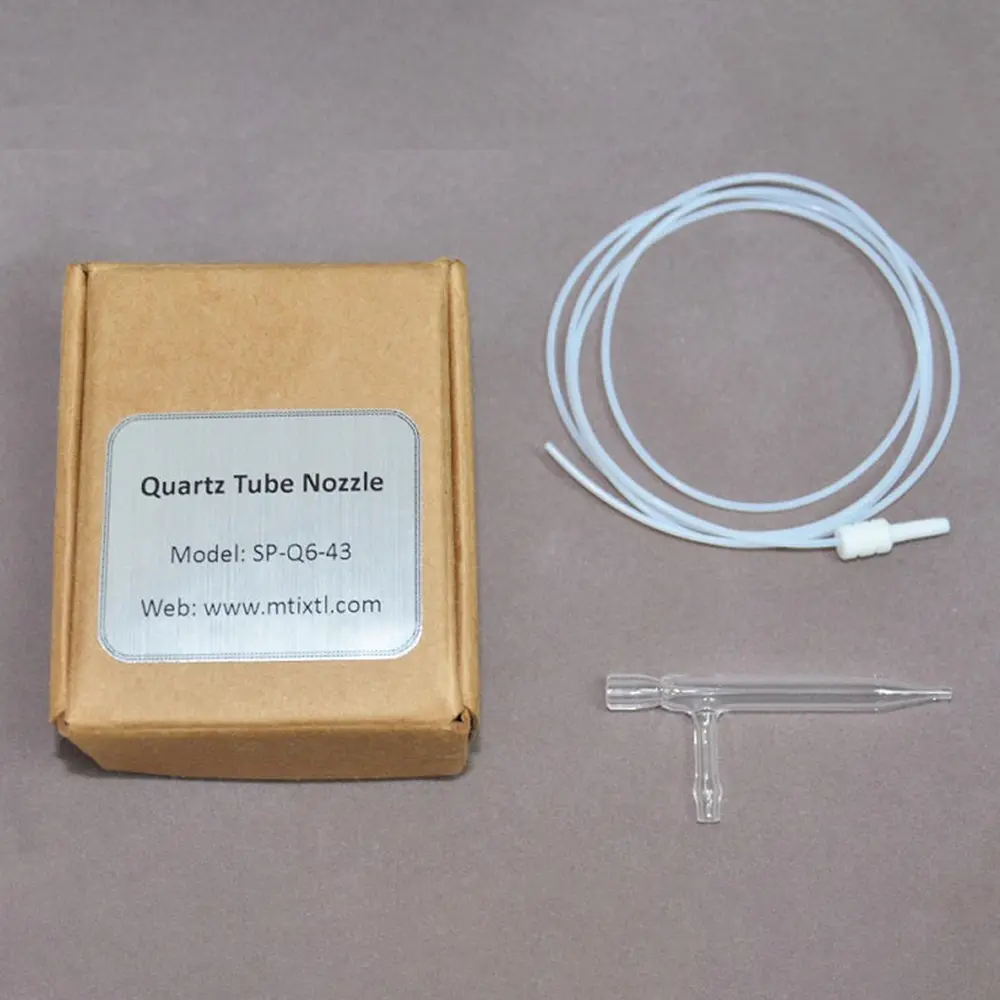

• Complete with Accessories: Includes a plastic connector and 880mm PTFE tubing for the liquid supply line.
• Versatile Applications: Ideal for spray pyrolysis, thin-film deposition, powder synthesis, nebulization for analysis, and other processes requiring controlled high-temperature atomization.
