1200°C High Temp Resistant
High Transmittance
Acid/Alkali Resistant
Complete Specifications
Aoxin Quartz manufactures high-precision Quartz Tubes with integrally fused flanges on both ends, designed to serve as robust, sealable chambers or connecting sections in diverse scientific and industrial systems. Crafted from high-purity fused quartz, these double-flanged tubes offer exceptional performance at high temperatures, in corrosive chemical environments, and where superior optical clarity is necessary. The precisely engineered flanges, complete with bolt holes, allow for secure and leak-tight connections to vacuum systems, reactors, furnaces, or other flanged components, often utilizing O-rings for optimal sealing. We offer a range of customizable dimensions to meet your specific application requirements.

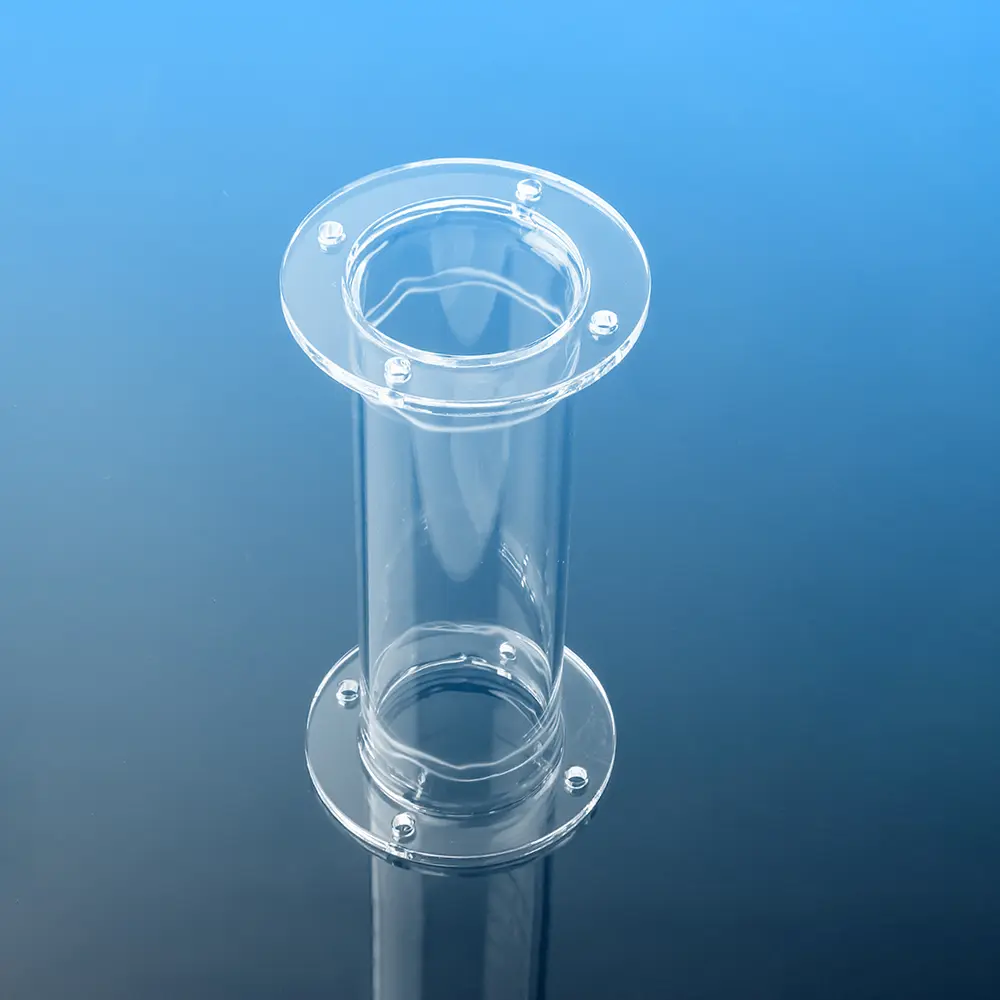

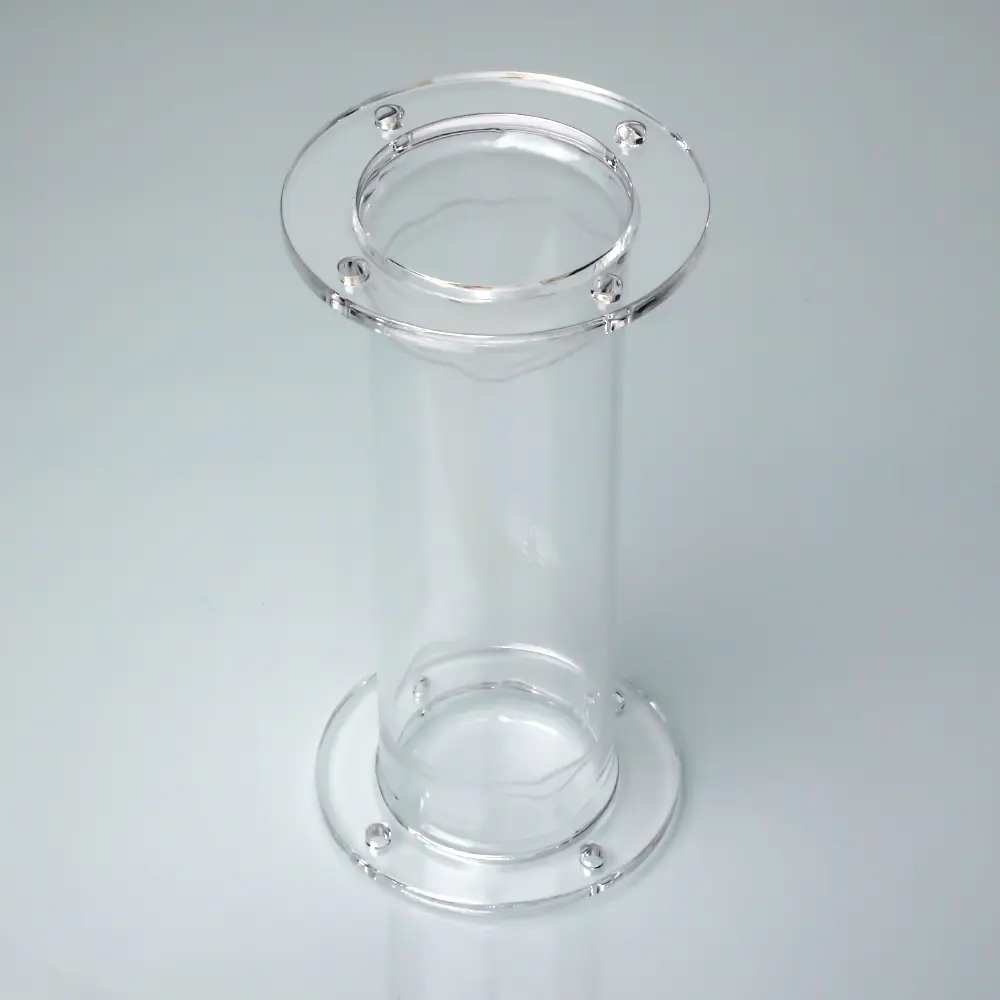

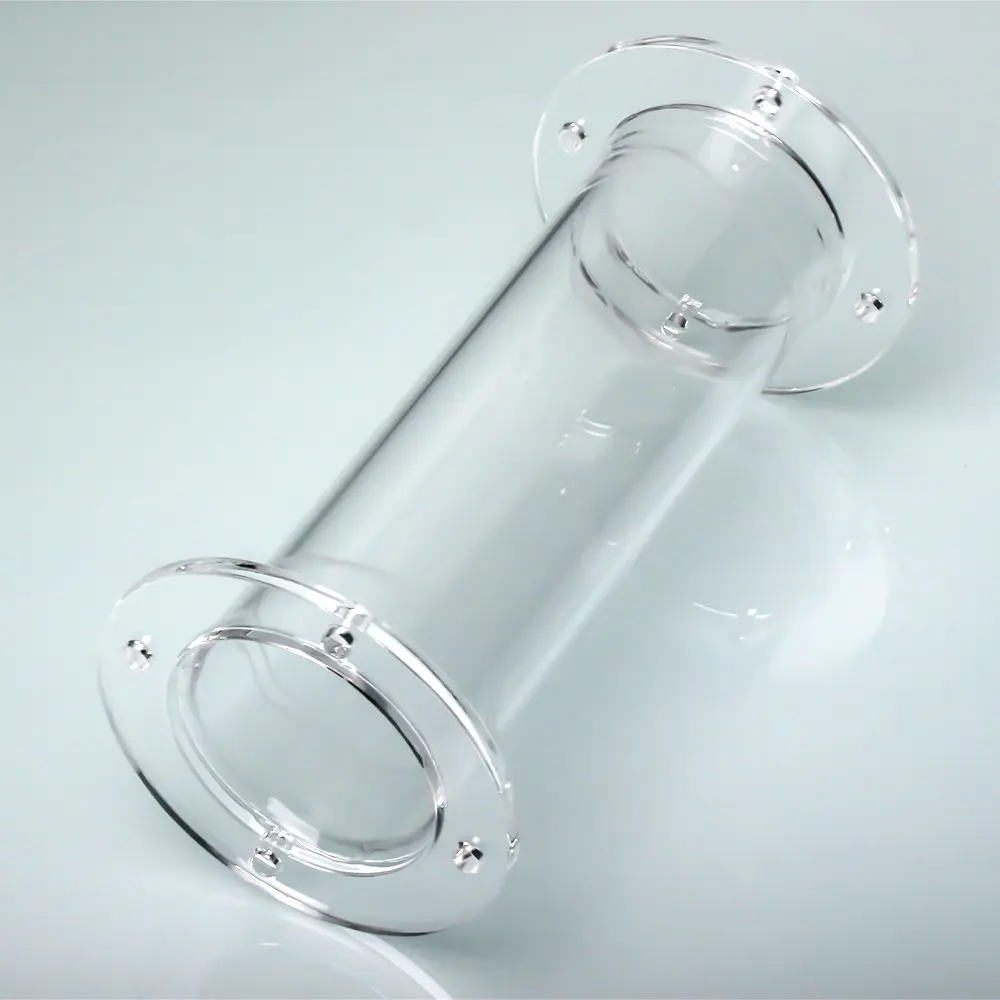

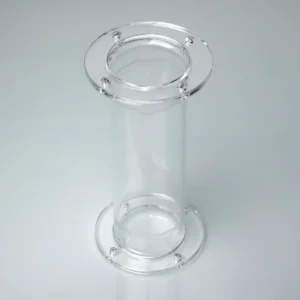

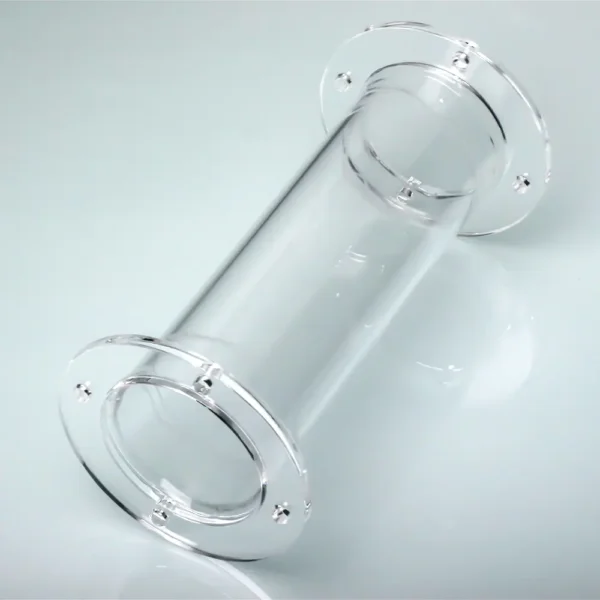

- Product Name : Quartz Tube with Flanges on Both Ends
- Material : 99.99 % Purity Quartz
- Work Temperature ：~1200℃
- Soften point : ~1730℃
- Hardness : 5.5 – 6.5 Mohs’ Scale 570 KHN 100
- Tensile Strength : 4.8×107 Pa (N/mm2) (7000 psi)
- Compression Strength : >1.1×109 Pa (160,000 psi)
Features
- Creates Sealable Chambers/Sections: Ideal for constructing custom reaction vessels, process tubes, or sight glass segments that require sealing at both ends.
- Robust Mechanical Connections: Flanges with bolt holes allow for strong and reliable connections to other system components, ensuring structural integrity under pressure or vacuum.
- High-Purity Quartz Integrity: Guarantees chemical inertness and prevents contamination, crucial for high-purity processes, semiconductor applications, and sensitive chemical reactions.
- Superior Thermal & Optical Properties: Withstands high temperatures, exhibits excellent thermal shock resistance, and offers high light transmission across a broad spectrum for visual monitoring or photochemical applications.
- Precision Engineering: Flanges are fused true and parallel, with accurately placed bolt holes for easy assembly and reliable sealing. Flange faces are typically ground and polished.
- Versatile System Integration: Can be used as furnace tubes, reactor bodies, vacuum chambers, optical cells, or any application requiring a transparent, inert, and high-temperature resistant tubular component with flanged connections.
- Fully Customizable: Manufactured to your specifications, including tube length, diameter, wall thickness, flange dimensions, O-ring groove specifications, and bolt hole patterns.”
