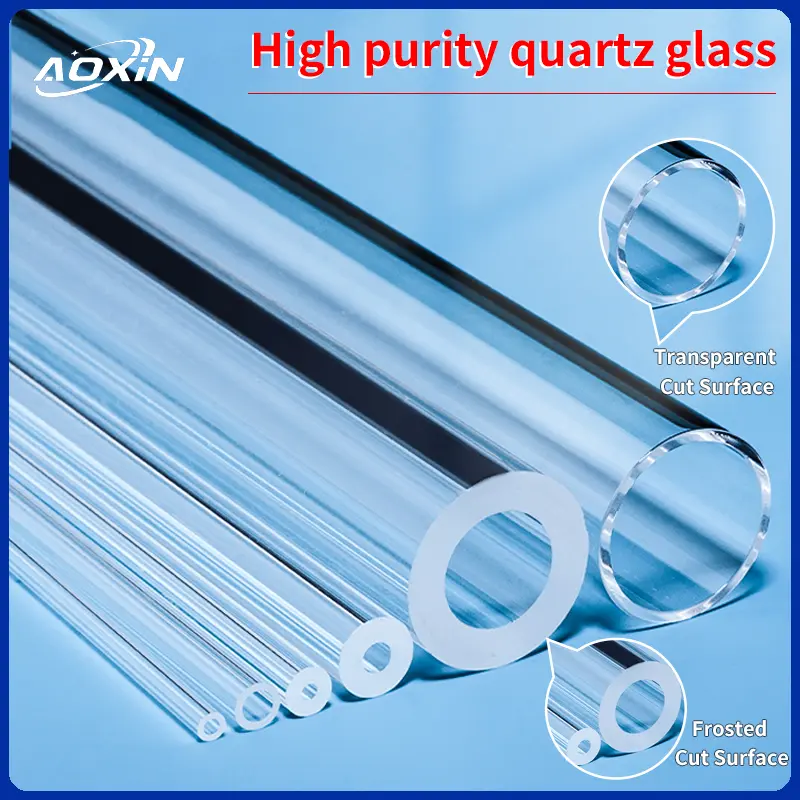

  • Assortment of high purity clear quartz glass tubes in various diameters, with close-ups highlighting transparent and frosted cut surface options.

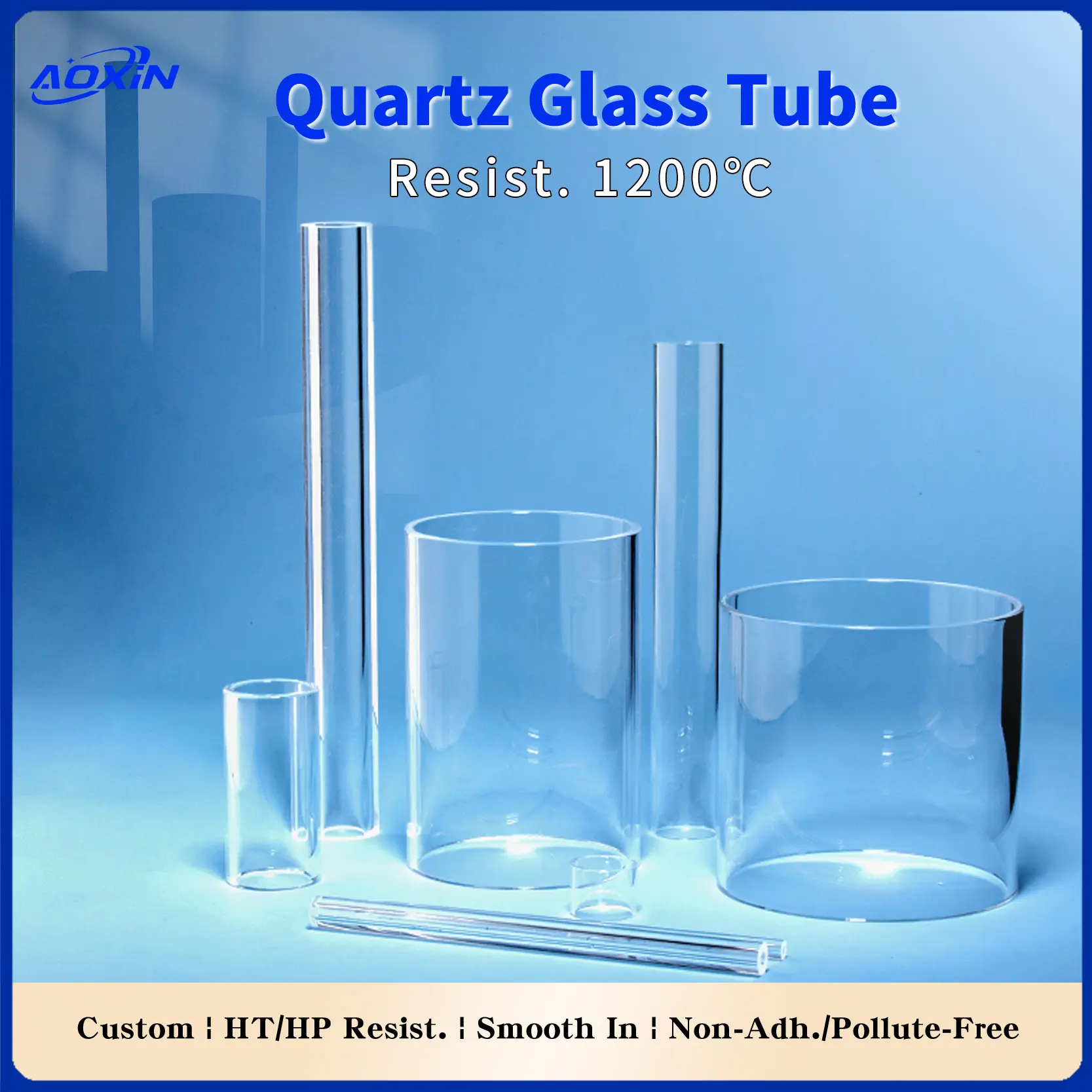

  • Various custom-sized clear quartz glass tubes and cylinders, heat resistant to 1200°C, suitable for high purity applications.
1/4
quartz glass tube
Promotional image of a high purity quartz glass tube showcasing excellent performance features like heat (1200°C), acid/alkali resistance, and SiO2>99.99% purity.
Assortment of high purity clear quartz glass tubes in various diameters, with close-ups highlighting transparent and frosted cut surface options.
Various custom-sized clear quartz glass tubes and cylinders, heat resistant to 1200°C, suitable for high purity applications.
quartz glass tubePromotional image of a high purity quartz glass tube showcasing excellent performance features like heat (1200°C), acid/alkali resistance, and SiO2>99.99% purity.Assortment of high purity clear quartz glass tubes in various diameters, with close-ups highlighting transparent and frosted cut surface options.Various custom-sized clear quartz glass tubes and cylinders, heat resistant to 1200°C, suitable for high purity applications.

Quartz glass tubing

Name
E-mail
Massage
表单已成功提交！
There has been some error while submitting the form. Please verify all form fields again.
Categories：

1200°C High Temp Resistant

High Transmittance

Acid/Alkali Resistant

Complete Specifications

Aoxin Quartz stands as a leading manufacturer of high-purity quartz tubes in China, with a robust monthly production capacity of 100 tons. We specialize in drawing quartz tubes in a comprehensive range of dimensions to meet diverse industrial needs. Beyond standard sizes, our expertise extends to advanced secondary processing tailored to your precise specifications. Our in-house fabrication capabilities include, but are not limited to : 1.Precision Cutting: Standard and custom-length cutting. 2.Fire Polishing: For smooth, defect-free edges and surfaces. 3.Grinding & Lapping: Achieving tight tolerances and specific surface finishes. 4.Flange Welding (Flanging): Crafting secure and custom-designed flanges. 5.Shaping & Bending: Creating complex geometries and custom forms.

Product Attributes

  • Material : Fused Quartz ( 99.99% SiO2)
  • Density of 99.99% : 2.2×10³ kg/cm³
  • Work temperature. ： ~ 1200 °C
  • Softening Point ：~1780°C
  • Dimensions : Customizable
  • Logo : Custom logo supported
  • Tolerances: Standard and high-precision tolerances available (Specify typical tolerance ranges)

We support custom quartz tube cutting using various methods, including swinging machine cutting, lathe cutting, and CNC equipment cutting. Each cutting method offers different levels of cutting precision and processing costs, suitable for diverse requirements. We provide tailor-made cutting solutions to meet your specific needs.

Outer diameter
(mm)		Inner diameter
(mm)		Wall thickness
(mm)		Length
(mm)
25mm21mm2mm600mm
25mm21mm2mm1000mm
25mm21mm2mm1200mm
40mm34mm3mm500mm
40mm34mm3mm800mm
40mm34mm3mm1000mm
40mm32mm4mm800mm
40mm32mm4mm1000mm
50mm44mm3mm450mm
50mm44mm3mm500mm
50mm44mm3mm600mm
50mm44mm3mm700mm
50mm44mm3mm800mm
50mm44mm3mm1000mm
50mm44mm3mm1200mm
50mm44mm3mm2000mm
50mm42mm4mm600mm
50mm42mm4mm1000mm
50mm42mm4mm1200mm
50mm40mm5mm1000mm
50mm40mm5mm1200mm
60mm54mm3mm800mm
60mm54mm3mm1000mm
60mm54mm3mm1200mm
60mm52mm4mm1000mm
60mm52mm4mm1200mm
60mm50mm5mm1000mm
60mm50mm5mm1200mm
80mm74mm3mm1000mm
80mm74mm3mm1200mm
80mm72mm4mm1000mm
80mm72mm4mm1200mm
80mm70mm5mm1000mm
80mm70mm5mm1200mm
100mm94mm3mm1000mm
100mm94mm3mm1200mm
100mm94mm3mm1800mm
100mm92mm4mm1000mm
100mm92mm4mm1200mm
100mm92mm4mm1800mm
100mm90mm5mm1000mm
100mm90mm5mm1200mm
100mm90mm5mm2000mm
120mm110mm5mm2000mm
Outer diameter
(in)		Inner diameter
(in)		Wall thickness
(in)		Length
(in)
0.98″0.83″0.08″23.62″
0.98″0.83″0.08″39.37″
0.98″0.83″0.08″47.24″
1.57″1.34″0.12″19.69″
1.57″1.34″0.12″31.50″
1.57″1.34″0.12″39.37″
1.57″1.26″0.16″31.50″
1.57″1.26″0.16″39.37″
1.97″1.73″0.12″17.72″
1.97″1.73″0.12″19.69″
1.97″1.73″0.12″23.62″
1.97″1.73″0.12″27.56″
1.97″1.73″0.12″31.50″
1.97″1.73″0.12″39.37″
1.97″1.73″0.12″47.24″
1.97″1.73″0.12″78.74″
1.97″1.65″0.16″23.62″
1.97″1.65″0.16″39.37″
1.97″1.65″0.16″47.24″
1.97″1.57″0.20″39.37″
1.97″1.57″0.20″47.24″
2.36″2.13″0.12″31.50″
2.36″2.13″0.12″39.37″
2.36″2.13″0.12″47.24″
2.36″2.05″0.16″39.37″
2.36″2.05″0.16″47.24″
2.36″1.97″0.20″39.37″
2.36″1.97″0.20″47.24″
3.15″2.91″0.12″39.37″
3.15″2.91″0.12″47.24″
3.15″2.83″0.16″39.37″
3.15″2.83″0.16″47.24″
3.15″2.76″0.20″39.37″
3.15″2.76″0.20″47.24″
3.94″3.70″0.12″39.37″
3.94″3.70″0.12″47.24″
3.94″3.70″0.12″70.87″
3.94″3.62″0.16″39.37″
3.94″3.62″0.16″47.24″
3.94″3.62″0.16″70.87″
3.94″3.54″0.20″39.37″
3.94″3.54″0.20″47.24″
3.94″3.54″0.20″78.74″
4.72″4.33″0.20″78.74″
TUBING TOLERANCES
DIAMETER RANGE (mm)DIAMETER REFERENCEDIAMETER NOMINAL %OUT OF ROUND % OF O.D. MAXIMUM WALL THICKNESSSIDING MAXIMUM % WALLBOW 1200 (mm)LENGTH (mm)
UP TO 5.9O.D.± 2.5%2%± 10%10%2± 3.2
6–35O.D.± 2%1.5%± 10%10%2± 3.2
35.1–79.9O.D.± 2%1.5%± 10%10%2± 6.4
80–150O.D.± 2%1.2%± 10%20%3± 6.4
151–189O.D.± 2%1.2%± 20%20%3± 9.5
190 UPO.D.± 2%1.2%± 25%20%3± 12.7
