1200°C High Temp Resistant
High Transmittance
Acid/Alkali Resistant
Complete Specifications

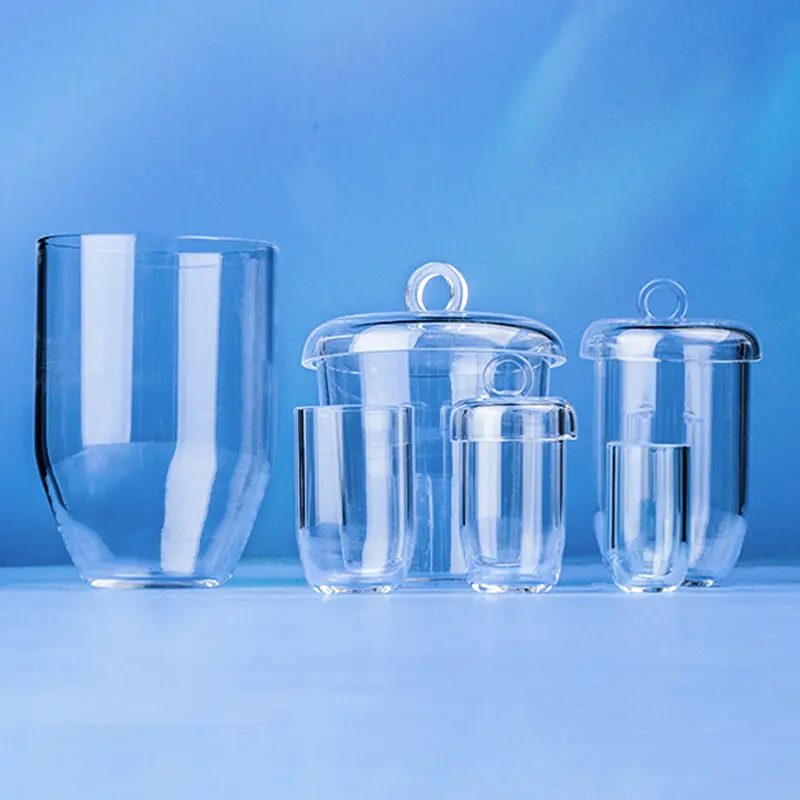

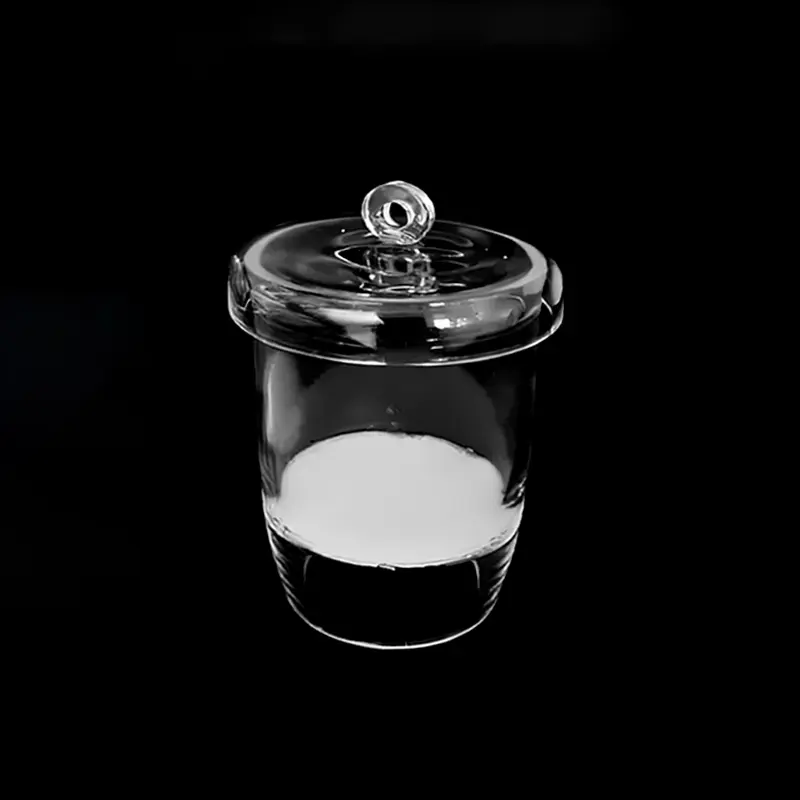

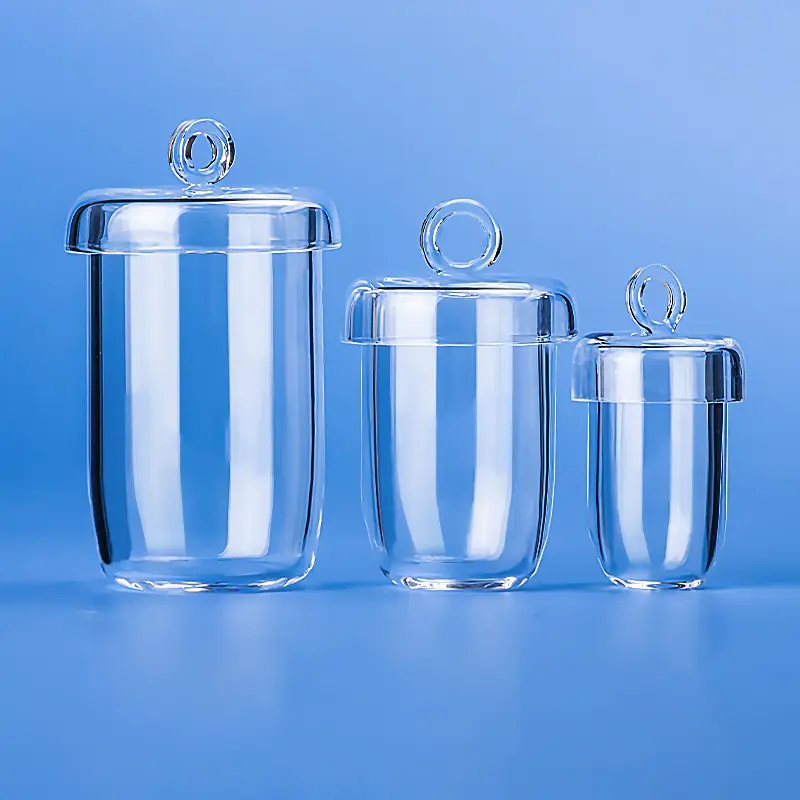

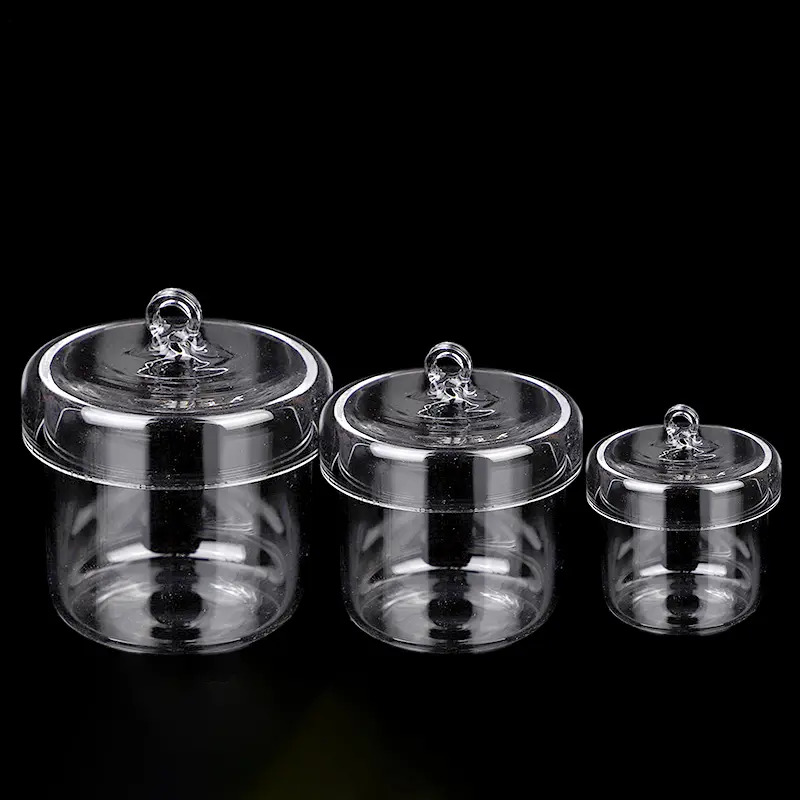

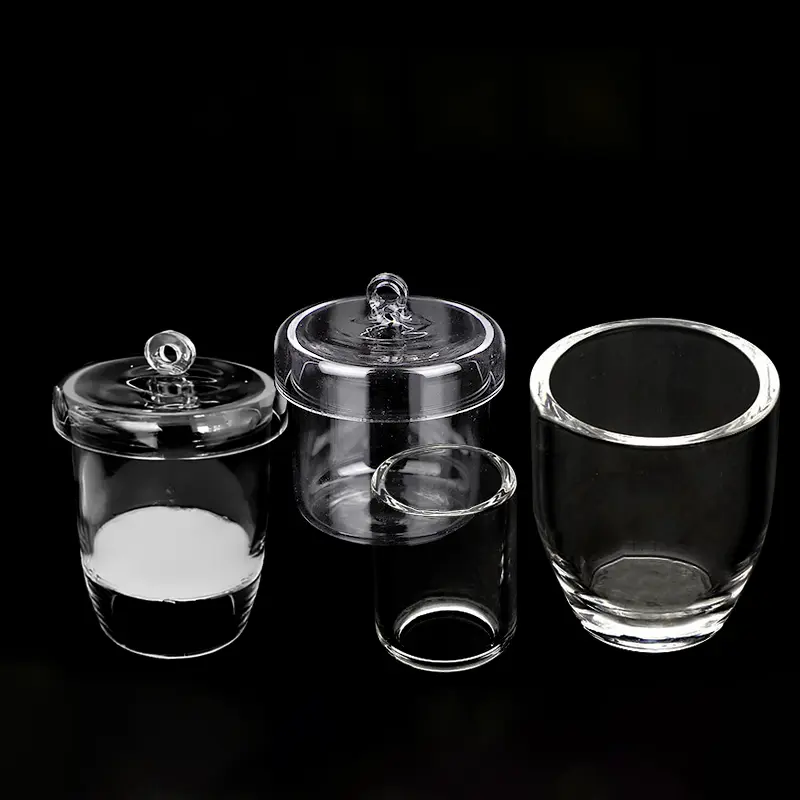

Our Conical Quartz Crucible is manufactured from high-purity quartz glass, specifically 99.99% Silicon Dioxide (4N grade fused quartz).
These crucibles are primarily designed for handling, heating, melting, or igniting substances under high-temperature conditions, suitable for laboratory experiments requiring high-temperature heating, melting, or fusion of various materials, including metals, non-metals, glass, and salts. They are particularly essential for constant weight determination in gravimetric analysis. Due to the outstanding thermal stability and chemical inertness of our high-purity quartz crucibles, their mass remains remarkably stable even after repeated ignition and weighing cycles, ensuring a minimal impact on your experimental results and contributing to the accuracy of quantitative analysis.
Furthermore, the high-purity quartz material is chemically stable, making it the most suitable high-temperature crucible material for analyses requiring high-purity results, such as trace element analysis or the preparation of high-purity materials, as it will not contaminate your samples. High transmittance allows for convenient observation of the sample’s experimental state. High-purity quartz crucibles offer excellent resistance to most acids and alkalis, with the primary exceptions being hydrofluoric acid (HF) and hot phosphoric acid above 300°C.
This conical structure, with its wide opening, narrow base, and inclined side walls, is specifically designed to facilitate decantation and separation during experiments. It helps to concentrate solid precipitates at the bottom, making observation and handling more convenient.
- Product Name : Fused Quartz Conical Crucible
- Material : 99.99 % Purity Quartz
- Work Temperature ：~1200℃
- Soften point : ~1730℃
- Hardness : 5.5 – 6.5 Mohs’ Scale 570 KHN 100
- Tensile Strength : 4.8×107 Pa (N/mm2) (7000 psi)
- Compression Strength : >1.1×109 Pa (160,000 psi)
| Volume（ml） | Outer diameter（mm） | Bottom Diameter （mm） | High （mm） |
|---|---|---|---|
| 5 | 20 | 13 | 38 |
| 5 | 26 | 13 | 40 |
| 10 | 25 | 20 | 45 |
| 10 | 30 | 20 | 47 |
| 20 | 33 | 20 | 45 |
| 20 | 38 | 20 | 47 |
| 25 | 33 | 20 | 50 |
| 30 | 40 | 25 | 55 |
| 30 | 45 | 25 | 57 |
| 40 | 45 | 27 | 50 |
| 50 | 45 | 27 | 65 |
| 50 | 52 | 27 | 67 |
| 100 | 55 | 35 | 75 |
| 100 | 60 | 35 | 77 |
| 100 | 60 | 35 | 60 |
| 100 | 66 | 35 | 62 |
| 150 | 60 | 35 | 85 |
| 150 | 66 | 35 | 87 |
| 150 | 75 | 45 | 65 |
| 150 | 80 | 45 | 67 |
| 200 | 60 | 40 | 110 |
| 250 | 75 | 45 | 110 |
| 300 | 75 | 45 | 125 |
| 500 | 90 | 115 | |
| 1000 | 110 | 150 | |
| 1300 | 140 | 135 | |
| 1500 | 155 | 135 | |
| 2000 | 150 | 160 | |
| 3000 | 180 | 180 | |
| 5000 | 180 | 260 |
Features
- High Temperature Capability: Suitable for use in tube furnaces with operating temperatures up to 1200°C.
- High Purity & Chemical Inertness: Made from high-purity fused quartz (99.99% SiO2, 4N grade). The material is chemically inert and free from impurities, ensuring it will not contaminate your samples and is ideal for high-purity applications.
- Excellent Thermal Stability: Features a low thermal expansion coefficient and excellent thermal shock resistance, which prevents cracking during rapid heating and cooling cycles.
