1200°C High Temp Resistant
High Transmittance
Acid/Alkali Resistant
Complete Specifications

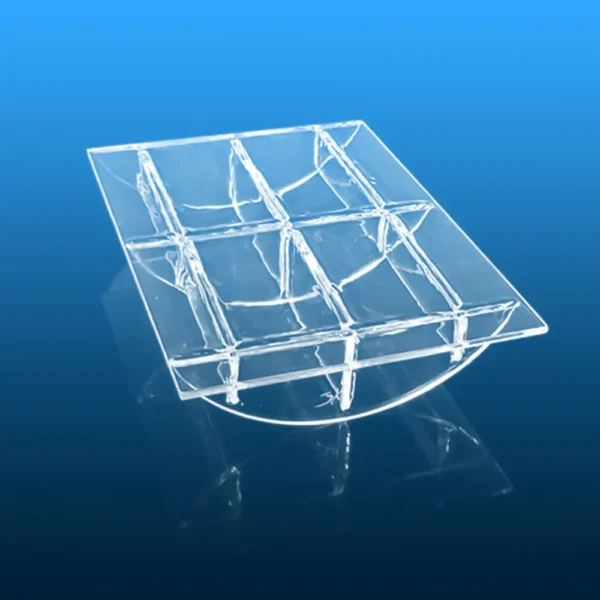

Aoxin Quartz manufactures this High-Purity Quartz Sample Platform, meticulously designed to provide a stable and flat surface for holding samples within process tubes during high-temperature treatments. Measuring 8.6 inches in length, 6.4 inches in width, and 2 inches in height, this platform is crafted from ultra-high purity (4N, 99.99% SiO2) fused quartz. It is engineered to withstand working temperatures up to 1200°C, ensuring minimal contamination and excellent thermal stability for your critical annealing, sintering, or other thermal processing applications. The design facilitates optimal sample placement and uniform heating.
- Product Name : Quartz Stage for Furnace Processing
- Material : 99.99 % Purity Quartz
- Work Temperature ：~1200℃
- Soften point : ~1730℃
- Hardness : 5.5 – 6.5 Mohs’ Scale 570 KHN 100
- Tensile Strength : 4.8×107 Pa (N/mm2) (7000 psi)
- Compression Strength : >1.1×109 Pa (160,000 psi)
Features
- Ultra-High Purity (4N Grade): Fabricated from 99.99% SiO2 quartz to prevent any contamination of your samples during high-temperature processing.
- Exceptional High-Temperature Performance: Reliably withstands working temperatures up to 1200°C, maintaining structural integrity and chemical inertness.
- Stable and Flat Sample Surface: Provides a consistently level platform within your process tube, crucial for uniform sample treatment and reliable experimental results.
- Superior Thermal Shock Resistance: Capable of enduring the thermal cycling associated with furnace operations.
- Chemically Inert: Highly resistant to most chemicals and process gases at elevated temperatures, ensuring no reaction with the sample or platform material.
- Optimized for Process Tubes: Specifically designed to create a usable flat surface within cylindrical furnace tubes for various sample types and sizes.
- Robust Design: The structure ensures durability and maintains flatness under thermal stress.”
