1200°C High Temp Resistant
High Transmittance
Acid/Alkali Resistant
Complete Specifications

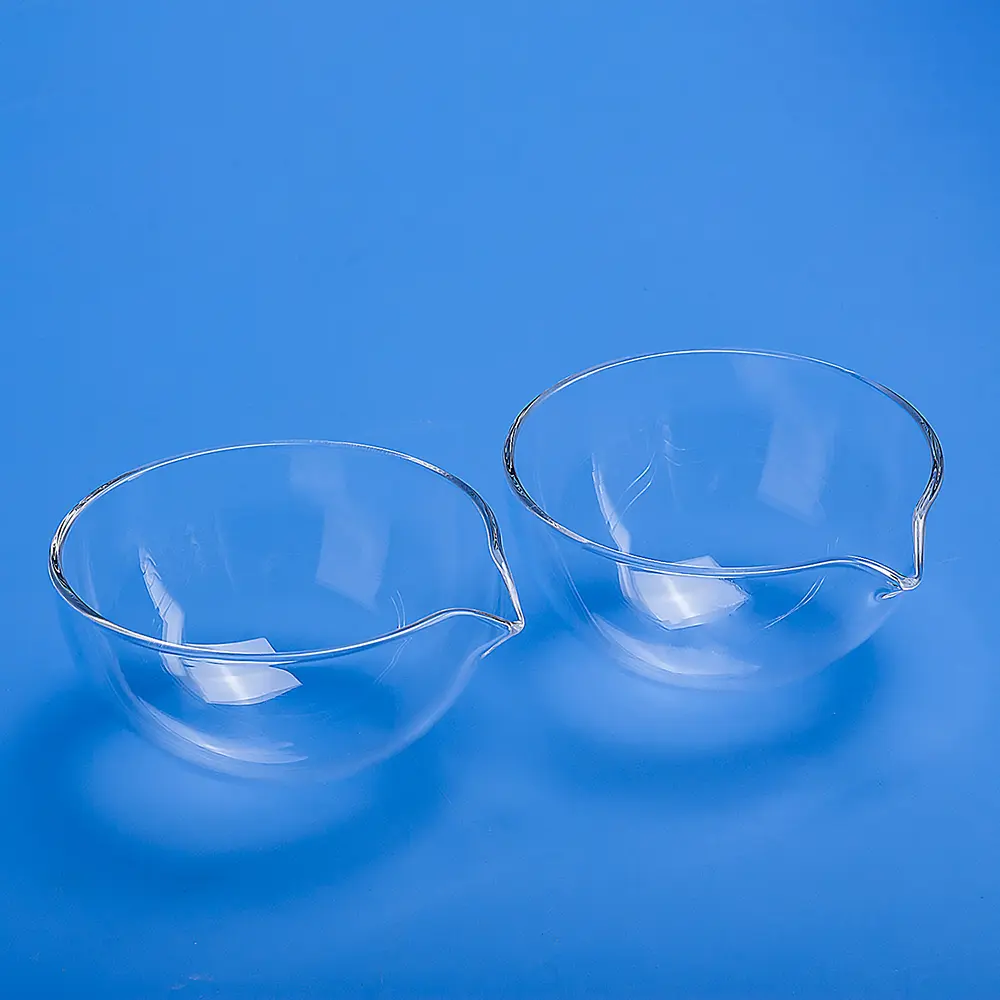

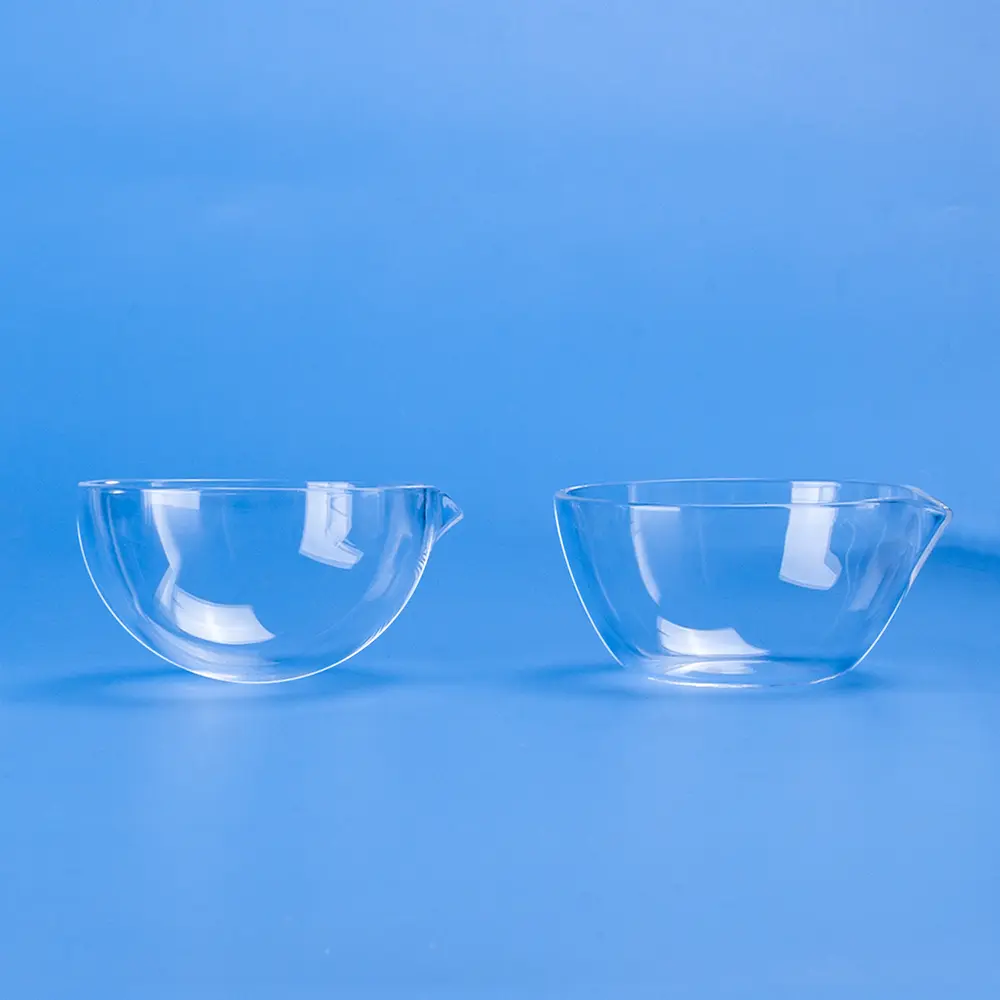

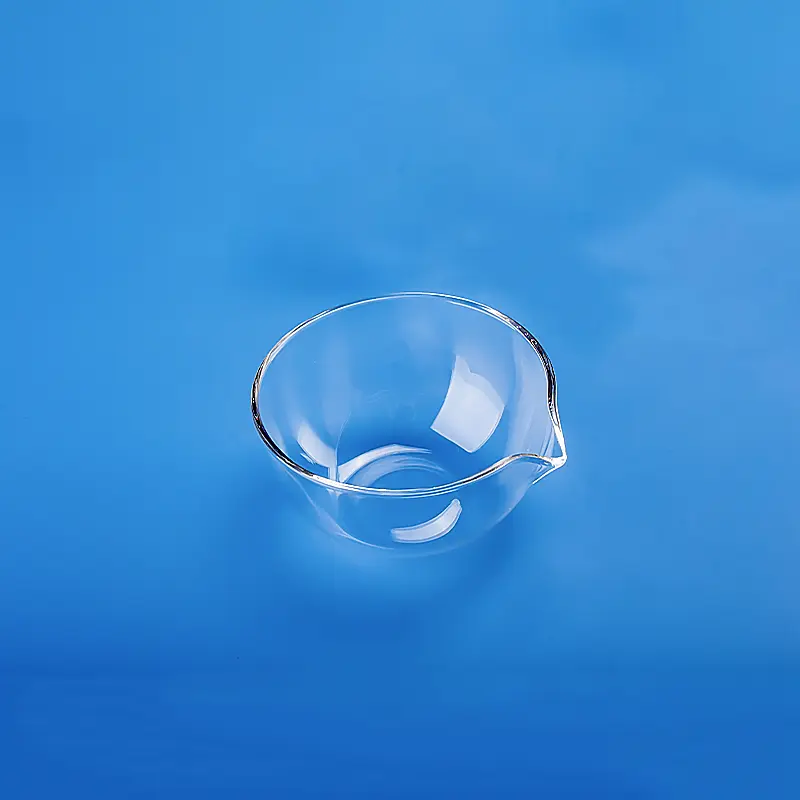

Aoxin Quartz offers a range of high-quality Quartz Evaporating Dishes, meticulously designed for efficient solvent evaporation and sample concentration in laboratory settings. Crafted from premium fused quartz, these dishes exhibit exceptional thermal stability, allowing for direct heating, and superior chemical resistance to a wide array of substances. Each dish features a convenient pouring spout for easy liquid transfer and a smooth, shallow design to maximize surface area for rapid evaporation. Available in various sizes, Aoxin Quartz evaporating dishes are indispensable tools for chemical analysis, residue determination, and material preparation.
- Product Name : quartz evaporating dish
- Material : 99.99 % Purity Quartz
- Work Temperature ：~1200℃
- Soften point : ~1730℃
- Hardness : 5.5 – 6.5 Mohs’ Scale 570 KHN 100
- Tensile Strength : 4.8×107 Pa (N/mm2) (7000 psi)
- Compression Strength : >1.1×109 Pa (160,000 psi)

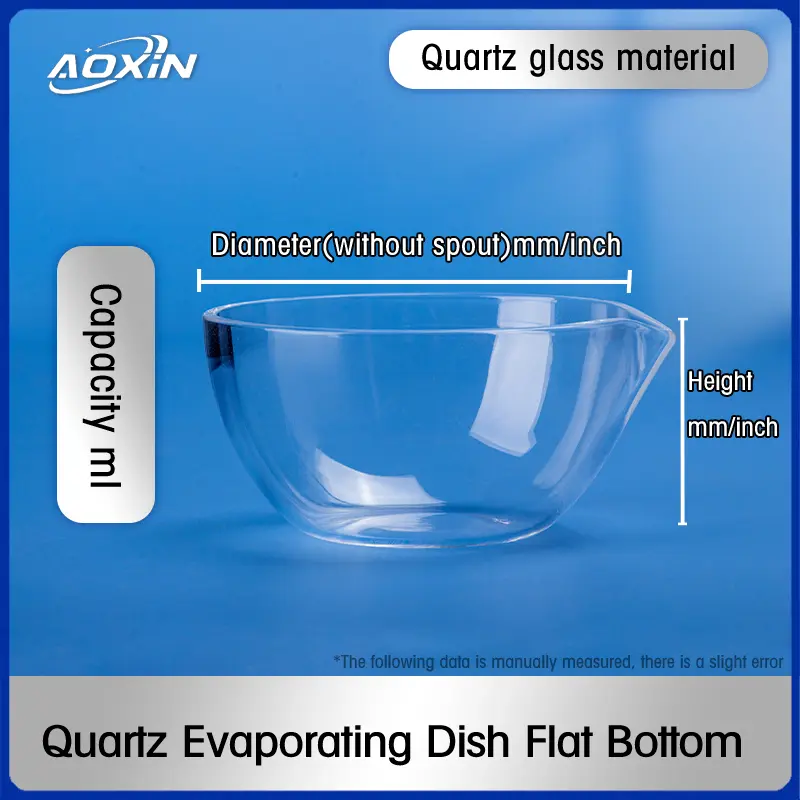

| Capacity (ml) | Diameter (mm) | Capacity (ml) | Diameter (in) |
|
|---|---|---|---|---|
| 50ml | 58mm | 50ml | 2.28″ | |
| 60ml | 58mm | 60ml | 2.28″ | |
| 100ml | 80mm | 100ml | 3.14″ | |
| 150ml | 90mm | 150ml | 3.54″ | |
| 250ml | 110mm | 250ml | 4.33″ | |
| 50ml | 58mm | 50ml | 2.28″ | |
| 60ml | 58mm | 60ml | 2.28″ | |
| 100ml | 80mm | 100ml | 3.14″ | |
| 150ml | 90mm | 150ml | 3.54″ | |
| 250ml | 110mm | 250ml | 4.33″ |
Features
- High Thermal Resistance: Made from fused quartz, these dishes can withstand high temperatures and direct heating, essential for rapid and effective evaporation.
- Superior Chemical Inertness: Highly resistant to most acids, bases, and other chemicals, ensuring no reaction with your samples and maintaining solution purity.

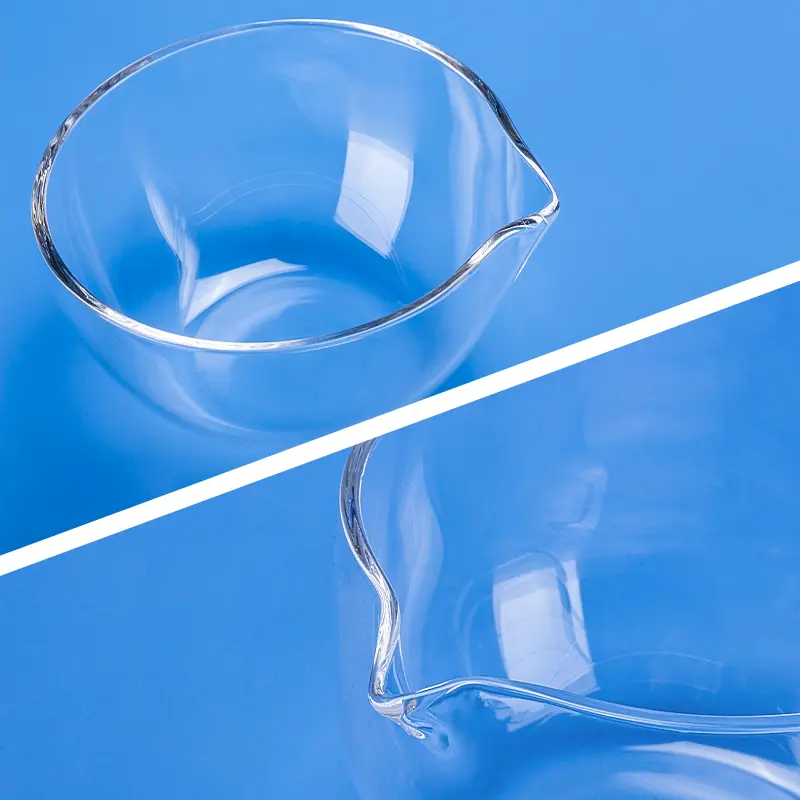

- Efficient Design: The shallow, wide form maximizes the surface area exposed to heat and air, promoting faster evaporation rates. A well-defined spout allows for clean and easy pouring of residual liquids.
- Durability and Reusability: Robust construction and the inherent properties of quartz make these dishes durable for repeated use and easy to clean.
- Thermal Shock Resistant: Can tolerate rapid changes in temperature without cracking or breaking, adding to their reliability in various lab procedures.
- Purity Assurance: The high purity of quartz minimizes any potential contamination of the sample during the evaporation process.

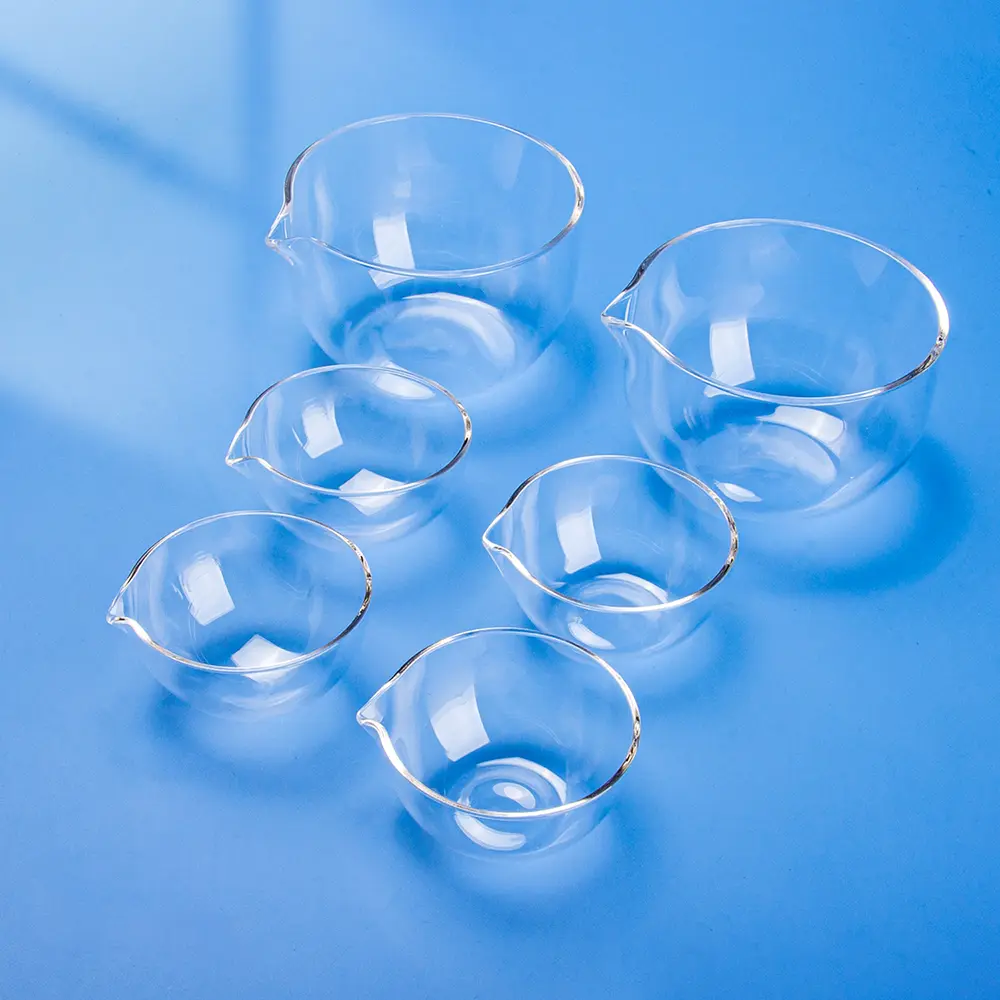

- Variety of Sizes: Available in a range of capacities to accommodate different sample volumes and experimental scales.”
