1200°C High Temp Resistant
High Transmittance
Acid/Alkali Resistant
Complete Specifications

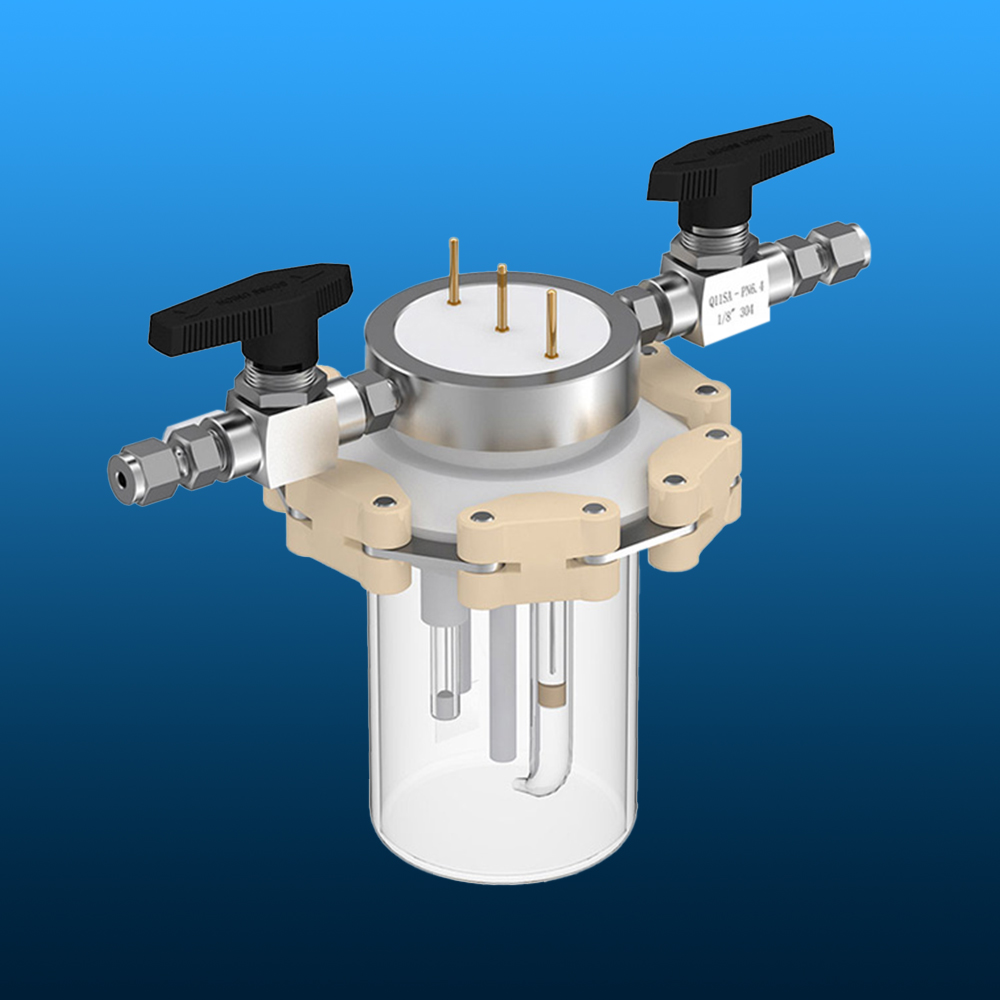

Aoxin Quartz manufactures a high-performance 50ml Quartz Glass Spectroelectrochemical Cell, designed for simultaneous electrochemical analysis and in-situ spectroscopic monitoring. The cell body is constructed from all-fusion-welded, high-purity quartz with over 95% light transmittance, providing an excellent optical path. It features a flanged top sealed with a PTFE lid and locking ring mechanism for a gas-tight environment. The system includes inlet/outlet valves and typically comes with a three-electrode setup (e.g., Ag/AgCl reference, Pt sheet counter, and a sample clamp working electrode), with options for customizing the reference electrode. Electrodes are inserted through sealed ports in the PTFE lid, making this cell ideal for advanced research in spectroelectrochemistry.
- Product Name : Quartz Glass Spectroelectrochemical Cell
- Material : 99.99 % Purity Quartz
- Work Temperature ：~1200℃
- Soften point : ~1730℃
- Hardness : 5.5 – 6.5 Mohs’ Scale 570 KHN 100
- Tensile Strength : 4.8×107 Pa (N/mm2) (7000 psi)
- Compression Strength : >1.1×109 Pa (160,000 psi)
Features
- Simultaneous Spectroscopic & Electrochemical Measurements: The high-purity quartz body with >95% transmittance allows for in-situ optical measurements (UV-Vis, fluorescence, etc.) while electrochemical experiments are in progress.
- Inert and High-Purity Environment: The all-quartz cell body and PTFE lid ensure minimal contamination and high chemical resistance, suitable for sensitive electrochemical systems.
- Versatile Three-Electrode System: Comes standard with a Ag/AgCl reference electrode, platinum sheet counter electrode, and a working electrode clamp, with the flexibility to customize the reference electrode (e.g., calomel, mercury sulfate) as per your experimental needs.

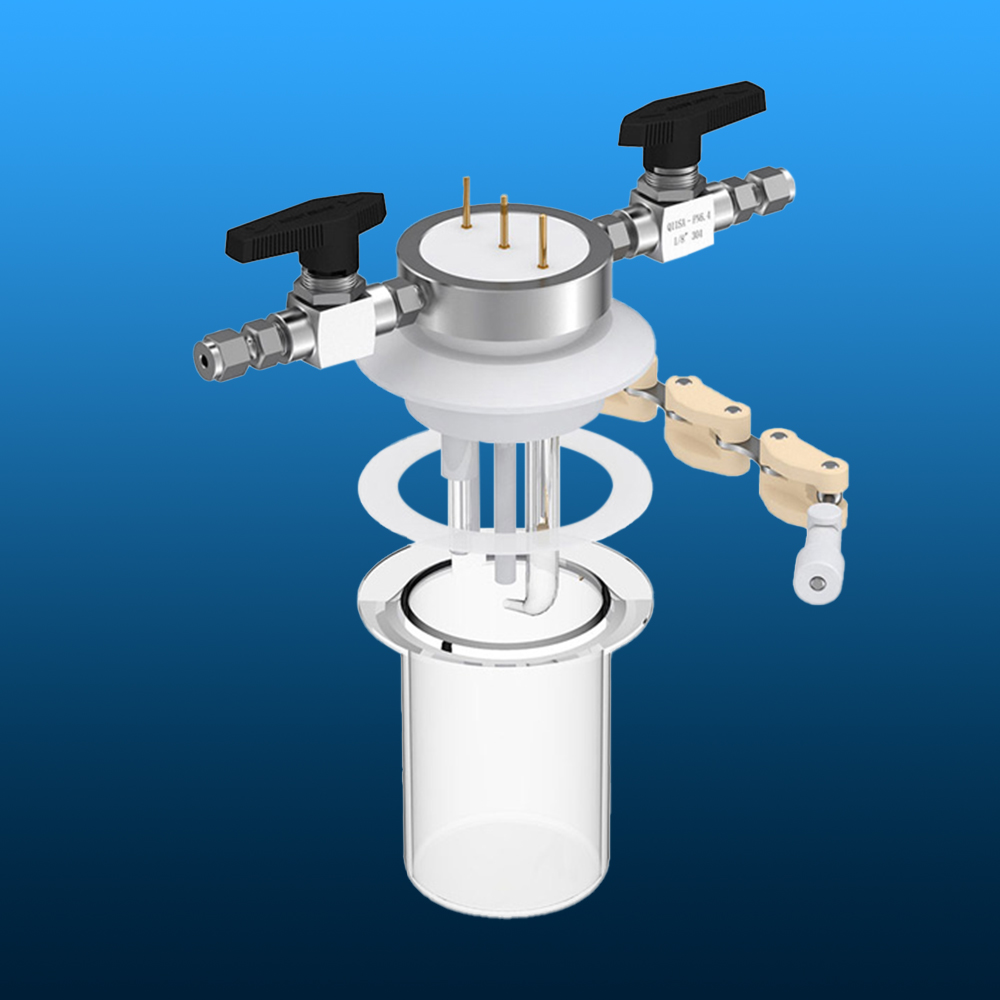

- Sealed System Design: The flanged quartz top, PTFE lid, sealing ring, and locking mechanism provide a gas-tight environment, crucial for anaerobic experiments or studies involving volatile species.
- Flow Capability: Equipped with inlet and outlet valves, allowing for solution exchange, continuous flow experiments, or purging with inert gas.
- Robust Construction: The all-quartz fusion-welded cell body ensures durability and thermal stability.
- Precision Electrode Integration: Electrodes are securely connected and sealed through dedicated ports in the PTFE lid.
- Optimized for Research: Ideal for studying reaction mechanisms, intermediates, electrochromic materials, and other phenomena where combined electrochemical and spectroscopic insights are valuable.
