1200°C High Temp Resistant
High Transmittance
Acid/Alkali Resistant
Complete Specifications

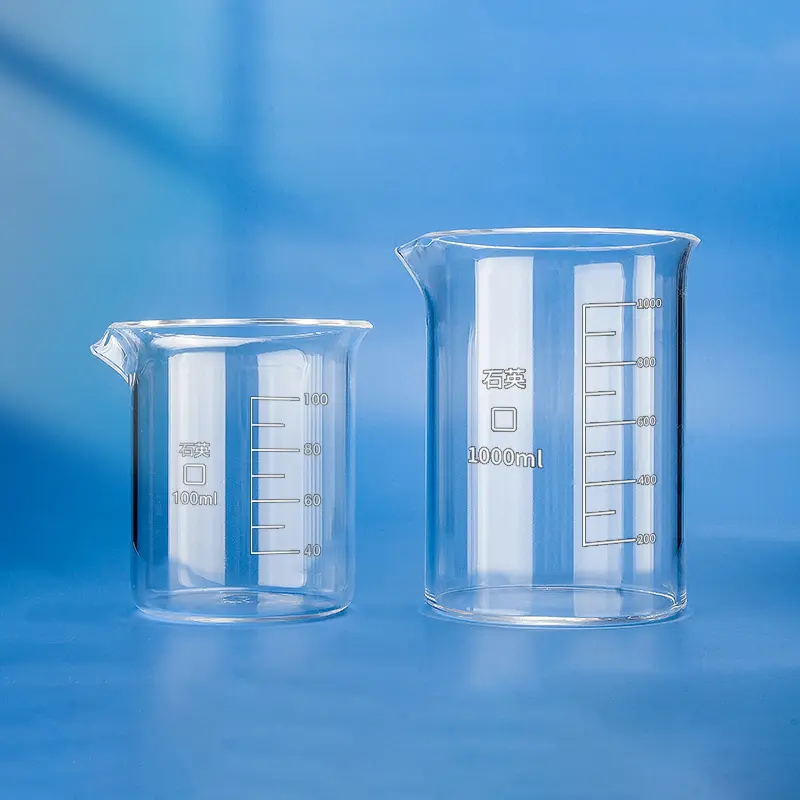

Aoxin Quartz offers a comprehensive range of high-quality Quartz Glass Beakers, available in both Low Form and High Form designs to suit diverse laboratory requirements. Crafted from premium fused quartz, these beakers provide exceptional thermal shock resistance and superior chemical inertness, making them ideal for heating, mixing, and holding various solutions and reagents. Both types feature clear, durable graduations for accurate volume measurement and a convenient pouring spout. Whether you need the stability of a low form beaker or the height of a high form beaker, Aoxin Quartz delivers precision-made labware for reliable performance.
- Product Name : quartz glass beaker
- Material : 99.99 % Purity Quartz
- Work Temperature ：~1200℃
- Soften point : ~1730℃
- Hardness : 5.5 – 6.5 Mohs’ Scale 570 KHN 100
- Tensile Strength : 4.8×107 Pa (N/mm2) (7000 psi)
- Compression Strength : >1.1×109 Pa (160,000 psi)

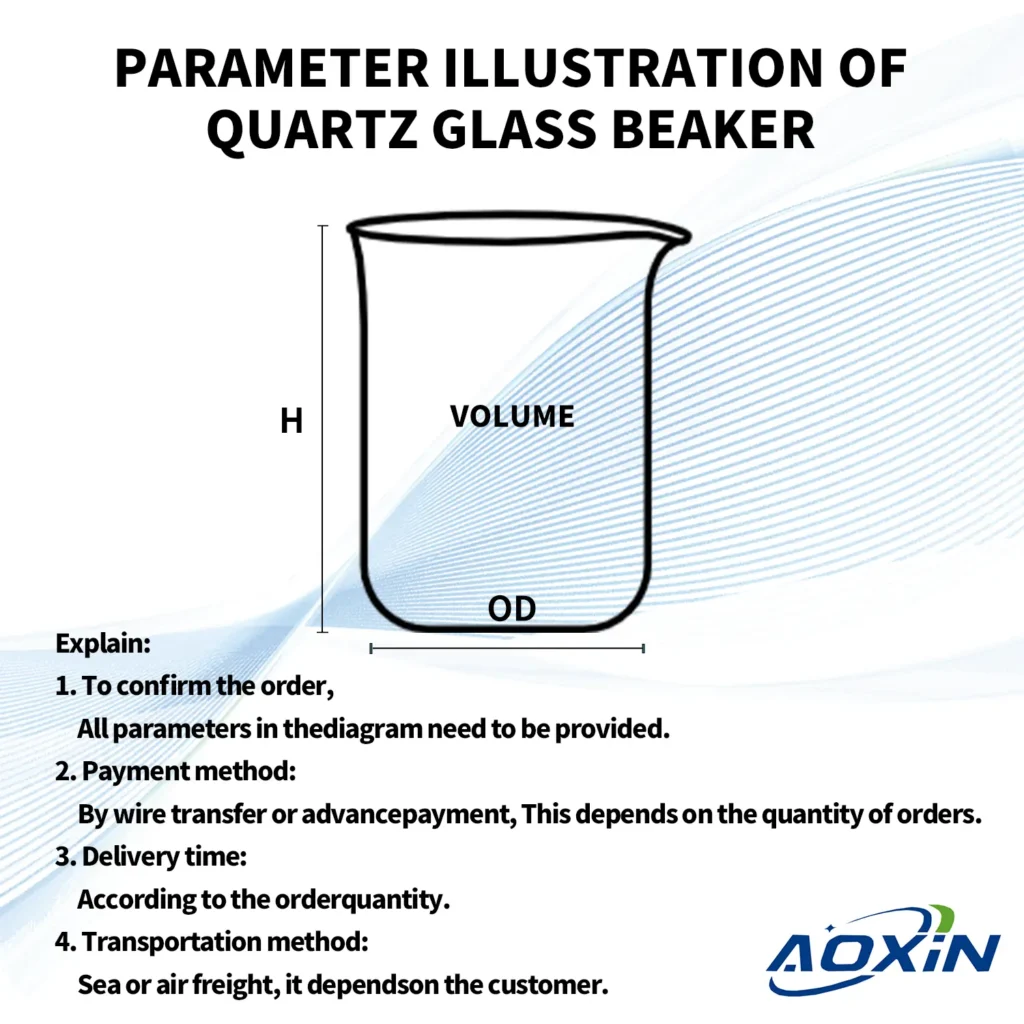

| Volume（ml） | Diameter（mm） | High（mm） | Diameter（in） | High（in） |
|---|---|---|---|---|
| 5ml | 25mm | 35mm | 0.98″ | 1.38″ |
| 10ml | 26mm | 35mm | 1.02″ | 1.38″ |
| 25ml | 34mm | 50mm | 1.34″ | 1.97″ |
| 50ml | 46mm | 60mm | 1.81″ | 2.36″ |
| 100ml | 55mm | 70mm | 2.17″ | 2.76″ |
| 150ml | 60mm | 80mm | 2.36″ | 3.15″ |
| 200ml | 67mm | 89mm | 2.64″ | 3.50″ |
| 250ml | 70mm | 95mm | 2.76″ | 3.74″ |
| 300ml | 78mm | 103mm | 3.07″ | 4.06″ |
| 400ml | 80mm | 112mm | 3.15″ | 4.41″ |
| 500ml | 90mm | 120mm | 3.54″ | 4.72″ |
| 1000ml | 110mm | 150mm | 4.33″ | 5.91″ |
| 2000ml | 135mm | 200mm | 5.31″ | 7.87″ |
| 3000ml | 150mm | 230mm | 5.91″ | 9.06″ |
| 5000ml | 190mm | 270mm | 7.48″ | 10.63″ |
Features
- Superior Material Quality: Made from high-purity fused quartz, ensuring minimal contamination, excellent thermal resistance for heating applications, and high resistance to most acids, bases, and solvents.

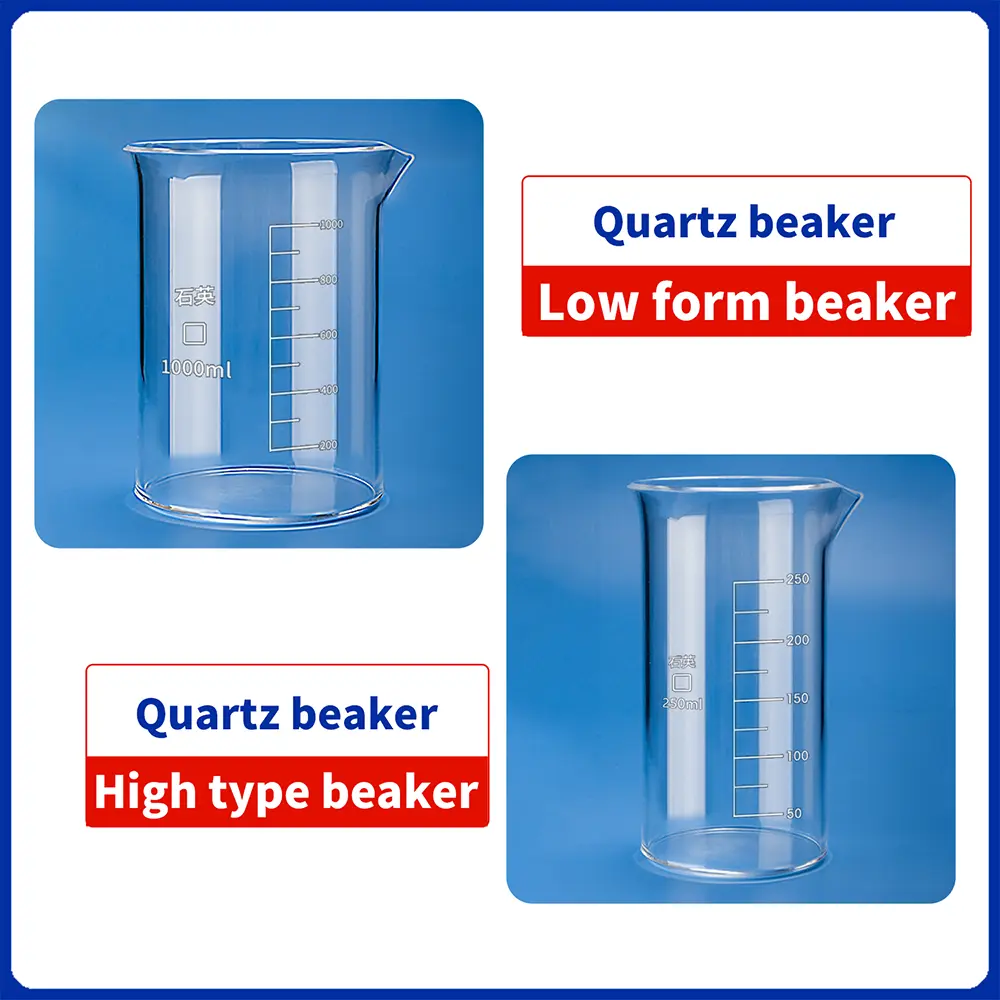

- Two Distinct Forms:

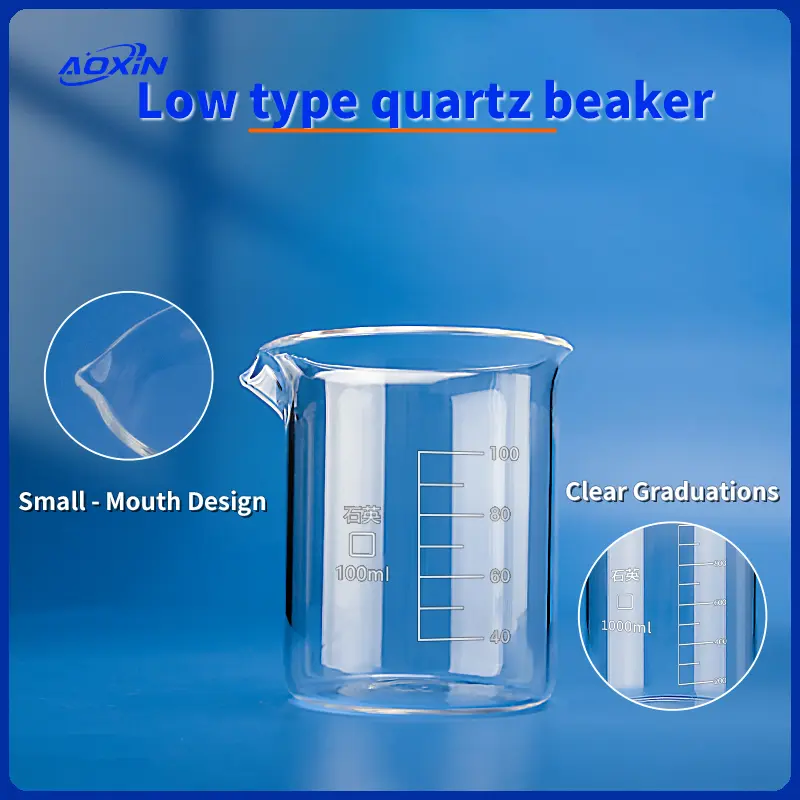

- Low Form Beakers: Offer a wider base for increased stability, ideal for stirring and general solution preparation. Feature a well-defined spout and clear graduations.

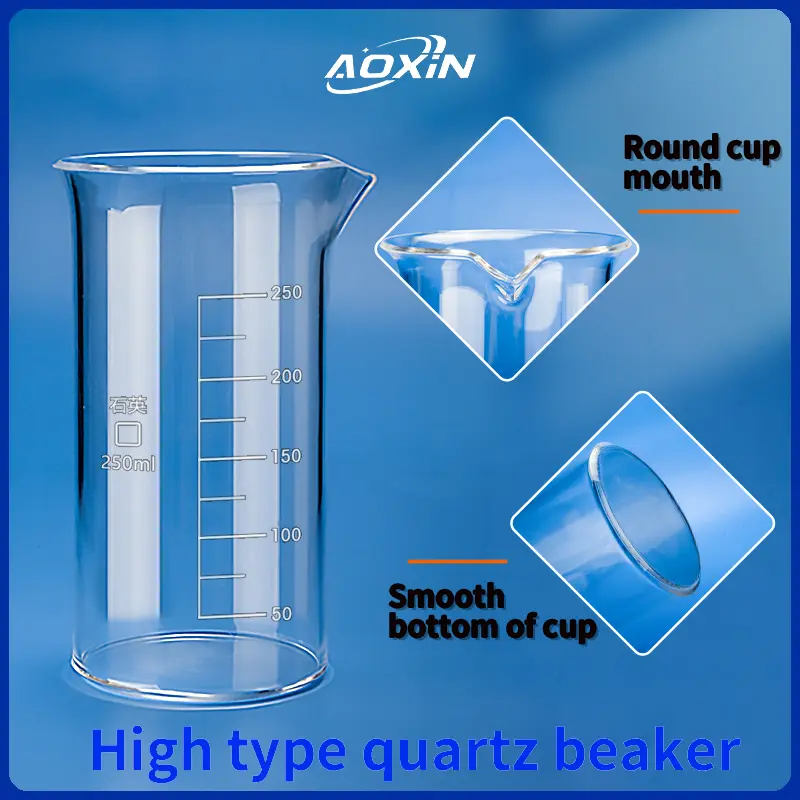

- High Form Beakers: Provide a taller profile, suitable for procedures requiring less surface area evaporation or for easier handling in certain setups. Feature a smooth rim, flat bottom, and clear graduations.
- Accurate Measurement: Clear and easy-to-read graduations allow for reliable volume estimation.
- Functional Design: Smooth pouring spouts minimize spillage, and robust construction ensures durability for daily lab use.
- Thermal Stability: Capable of withstanding rapid temperature changes and high operating temperatures.
- Chemical Inertness: Will not react with most chemicals, ensuring the purity of your samples and solutions.
- Backed by Aoxin Expertise: Manufactured with 15 years of experience in quartz glass production, ensuring consistent quality and performance.
