1200°C High Temp Resistant
High Transmittance
Acid/Alkali Resistant
Complete Specifications

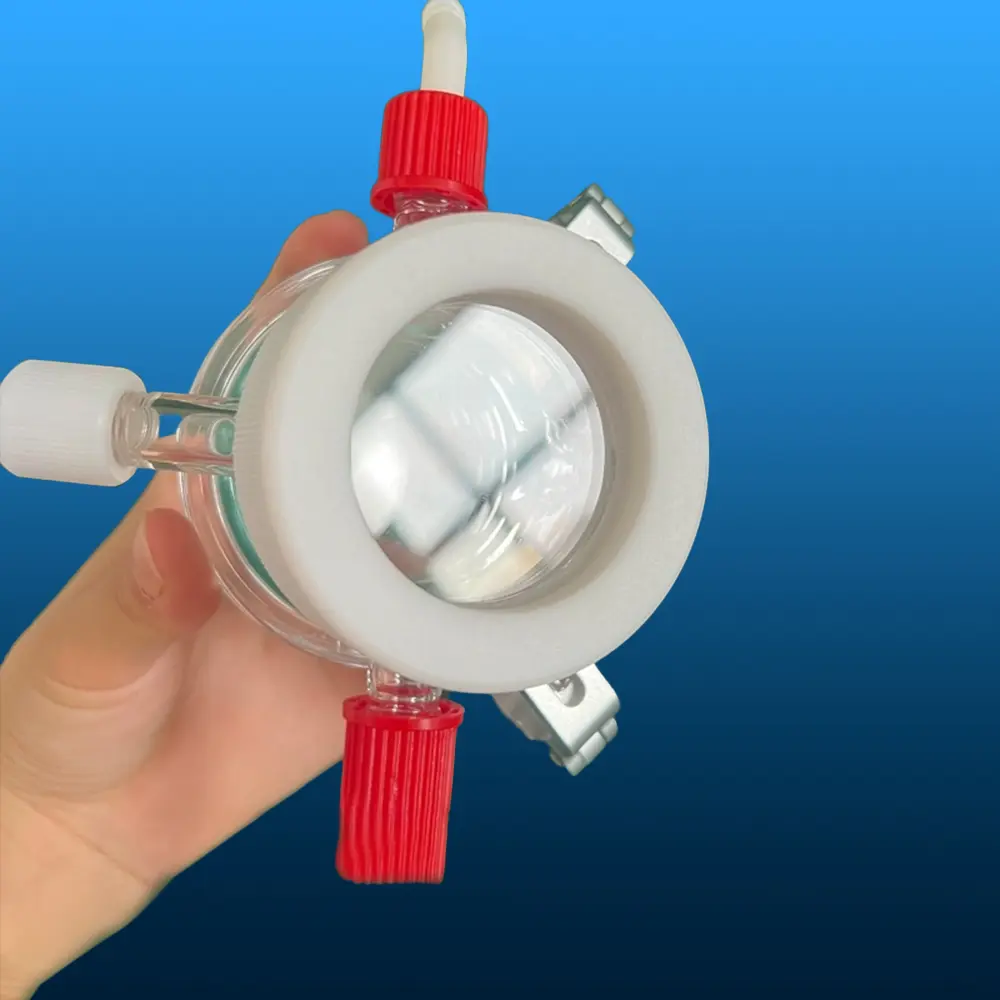

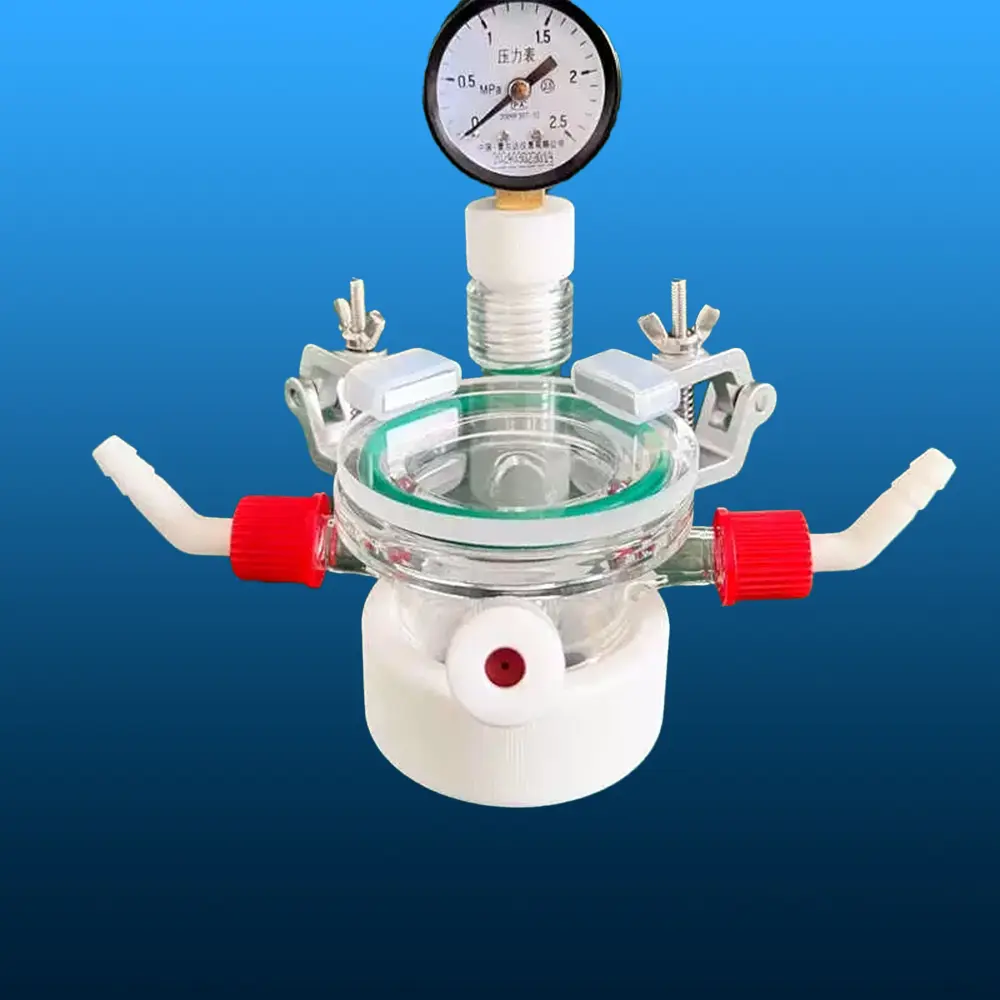

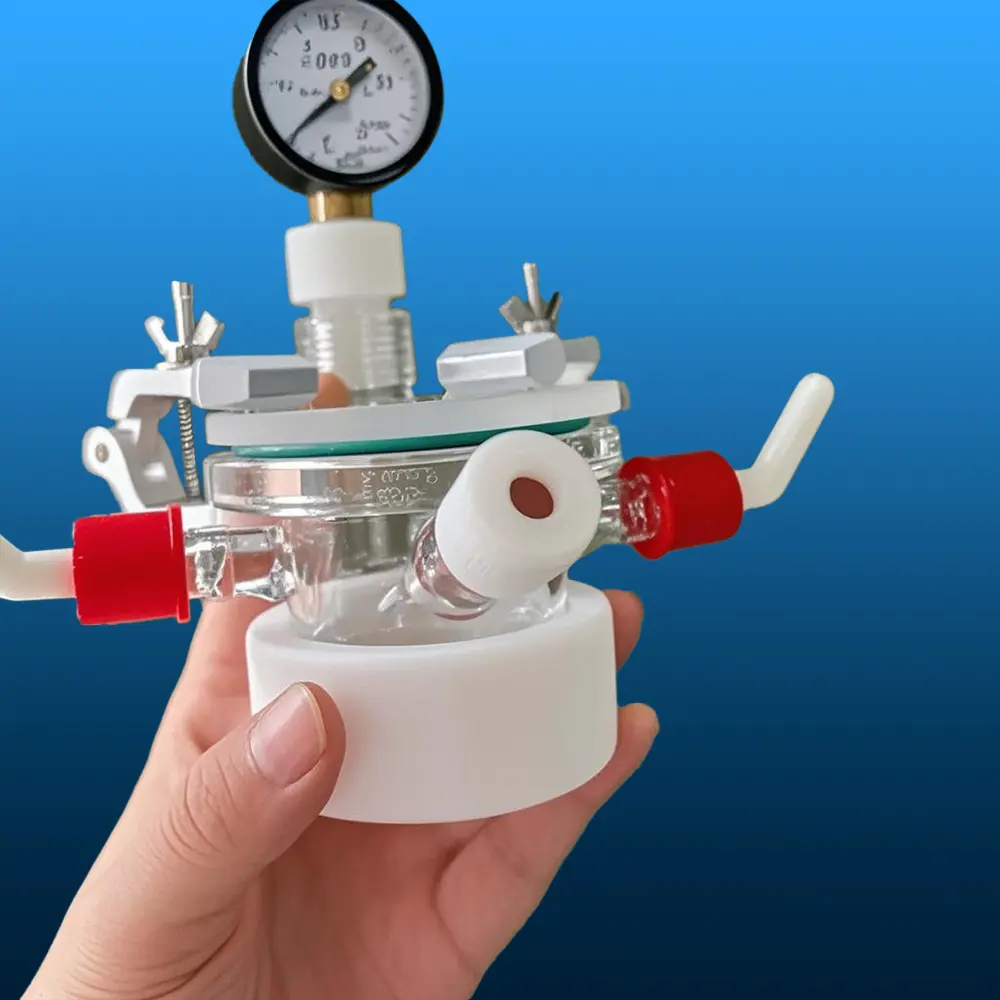

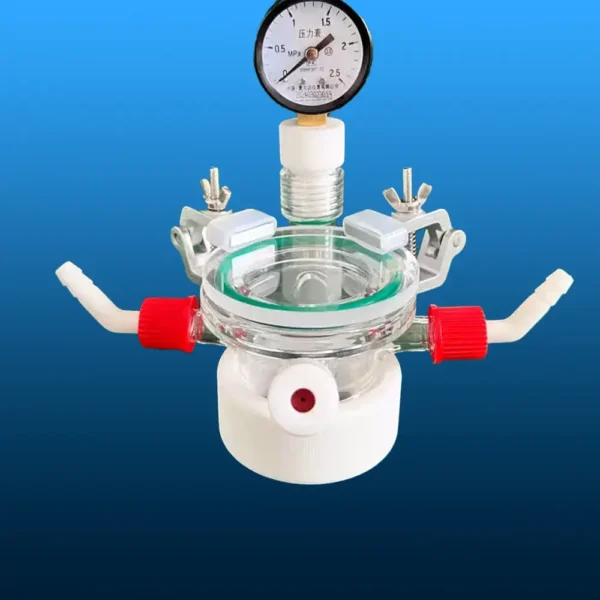

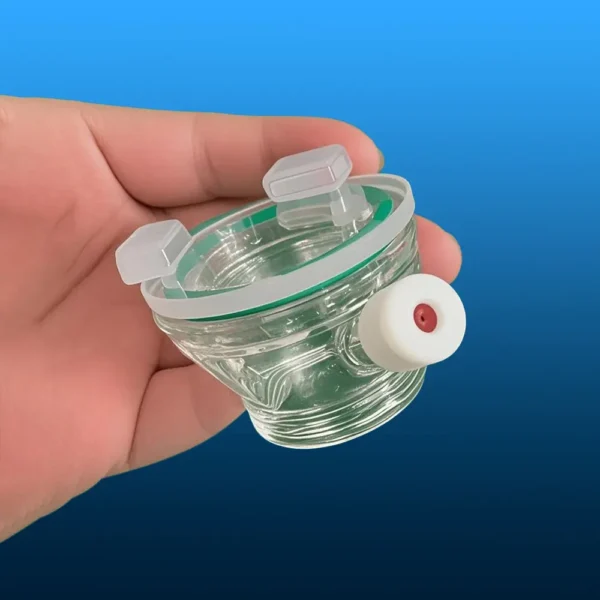

Aoxin Quartz designs and manufactures high-performance Quartz Photocatalytic Reactors, specifically engineered for advanced research and applications in photochemistry and photocatalysis. Constructed from high-purity fused quartz to ensure maximum light penetration (especially in the UV-Visible spectrum crucial for photocatalysis), these reactors feature a robust, flanged design with a secure clamping mechanism and sealing gasket for controlled atmosphere or pressurized operations. Equipped with multiple side ports for gas/liquid inlet/outlet, sampling, and probe insertion, and a central top port often utilized for light sources, stirrers, or pressure monitoring (as shown with a pressure gauge), our reactors offer versatility for a wide range of photochemical studies. The transparent quartz body allows for full visibility of the reaction process.
- Product Name : quartz photocatalytic reactor
- Material : 99.99 % Purity Quartz
- Work Temperature ：~1200℃
- Soften point : ~1730℃
- Hardness : 5.5 – 6.5 Mohs’ Scale 570 KHN 100
- Tensile Strength : 4.8×107 Pa (N/mm2) (7000 psi)
- Compression Strength : >1.1×109 Pa (160,000 psi)
Features
- Optimal Light Transmission: Made from high-purity fused quartz, providing excellent transmittance across the UV-Visible spectrum, essential for efficient photocatalytic reactions.
- Controlled Reaction Environment: The secure flanged and clamped sealing system, along with multiple valved ports, allows for precise control of the internal atmosphere (e.g., inert gas, specific reactant gases) and pressure.
- Versatile Experimental Setup: Multiple inlet/outlet ports and a central port accommodate various configurations, including gas purging, continuous flow reactions, batch reactions, sample extraction, and the integration of sensors or stirrers.
- Superior Chemical & Thermal Resistance: Quartz construction ensures high resistance to most chemicals and solvents, and can withstand a wide range of operating temperatures suitable for photochemical studies.
- Durable & Secure Construction: Robust glass design combined with a reliable clamping mechanism ensures safe operation even under moderate pressures.
- Clear Process Monitoring: The transparent quartz allows for direct visual observation of the reaction, color changes, and catalyst dispersion.
- Customizable Options: While featuring standard designs, Aoxin Quartz can also discuss modifications or custom configurations to suit specific research needs.
