1200°C High Temp Resistant
High Transmittance
Acid/Alkali Resistant
Complete Specifications

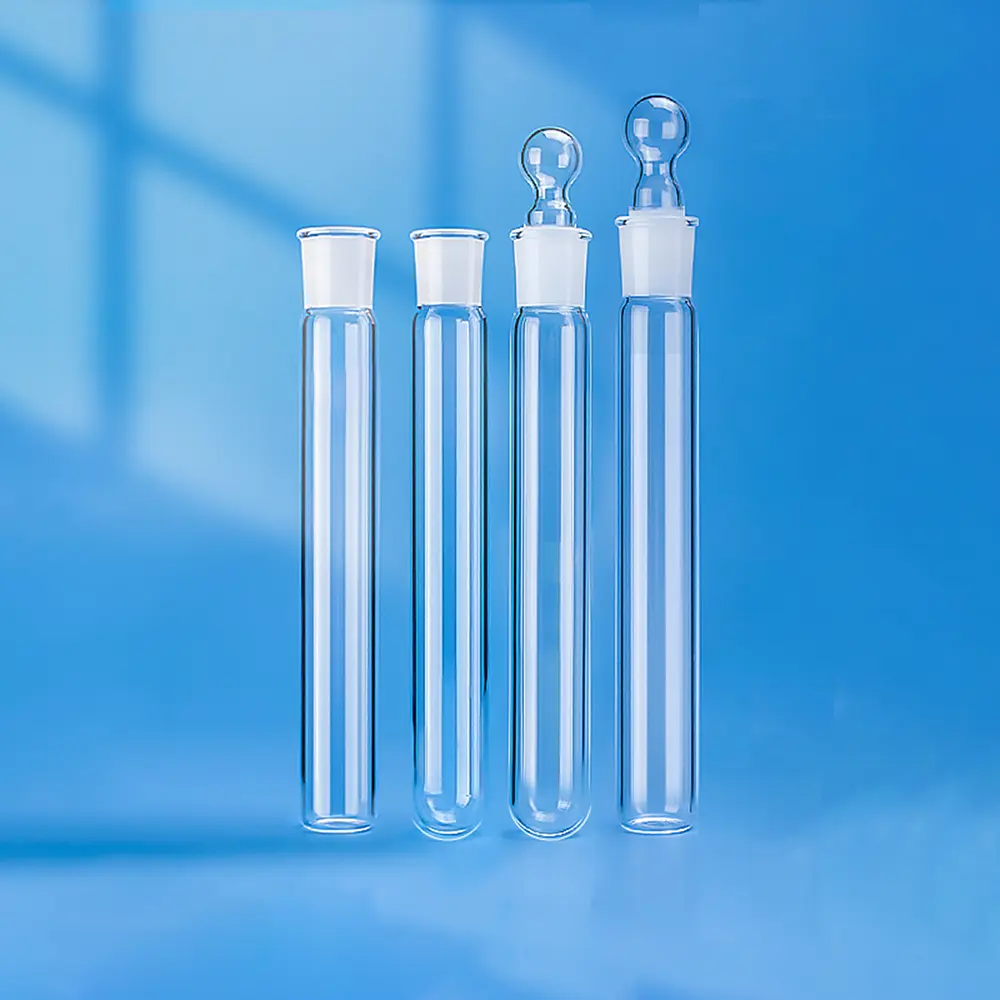

Aoxin Quartz is your direct source for premium Quartz Reaction Tubes, meticulously engineered from high-purity fused quartz (SiO2 > 99.99%). Designed for a wide array of chemical reactions and laboratory experiments, particularly those requiring high temperatures (up to 1200°C), exceptional chemical inertness, and optimal optical clarity, including UV transparency for photochemical applications like photocatalysis. Whether you need standard configurations or fully customized designs, we deliver precision and reliability.
- Product Name : Quartz Reaction Tube
- Material : 99.99 % Purity Quartz
- Work Temperature ：~1200℃
- Soften point : ~1730℃
- Hardness : 5.5 – 6.5 Mohs’ Scale 570 KHN 100
- Tensile Strength : 4.8×107 Pa (N/mm2) (7000 psi)
- Compression Strength : >1.1×109 Pa (160,000 psi)
| Item No. | Product Name | Specification |
|---|---|---|
| 1 | Quartz Reaction Tube, 5ml, ST 19 Joint | OD 22mm x 70mm |
| 2 | Quartz Reaction Tube, 5ml, ST 14 Joint | OD 16mm x 100mm |
| 3 | Quartz Reaction Tube, 10ml, ST 19 Joint | OD 22mm x 100mm |
| 4 | Quartz Reaction Tube, 15ml, ST 14 Joint | OD 18mm x 160mm |
| 5 | Quartz Reaction Tube, 15ml, ST 19 Joint | OD 18mm x 150mm |
| 6 | Quartz Reaction Tube, 25ml, ST 14 Joint | OD 22mm x 125mm |
| 7 | Quartz Reaction Tube, 25ml, ST 19 Joint | OD 22mm x 125mm |
| 8 | Quartz Reaction Tube, 25ml, ST 24 Joint | OD 22mm x 125mm |
| 9 | Quartz Reaction Tube, 30ml, ST 14 Joint | OD 22mm x 155mm |
| 10 | Quartz Reaction Tube, 30ml, ST 19 Joint | OD 25mm x 150mm |
| 11 | Quartz Reaction Tube, 50ml, ST 14 Joint | OD 22mm x 225mm |
| 12 | Quartz Reaction Tube, 50ml, ST 19 Joint | OD 30mm x 150mm |
| 13 | Quartz Reaction Tube, 50ml, ST 19 Joint | OD 25mm x 200mm |
| 14 | Quartz Reaction Tube, 50ml, ST 19 Joint | OD 22mm x 225mm |
| 15 | Quartz Reaction Tube, 50ml, ST 29 Joint | OD 35mm x 130mm |
| 16 | Quartz Reaction Tube, 100ml, ST 19 Joint | OD 30mm x 220mm |
| 17 | Quartz Reaction Tube, 100ml, ST 29 Joint | OD 35mm x 220mm |
Features
- Exceptional Purity (SiO2 > 99.99%): Minimizes contamination, ensuring the integrity and accuracy of your experimental results.
- High Temperature Stability: Reliably withstands temperatures up to 1200°C, suitable for demanding thermal processes.

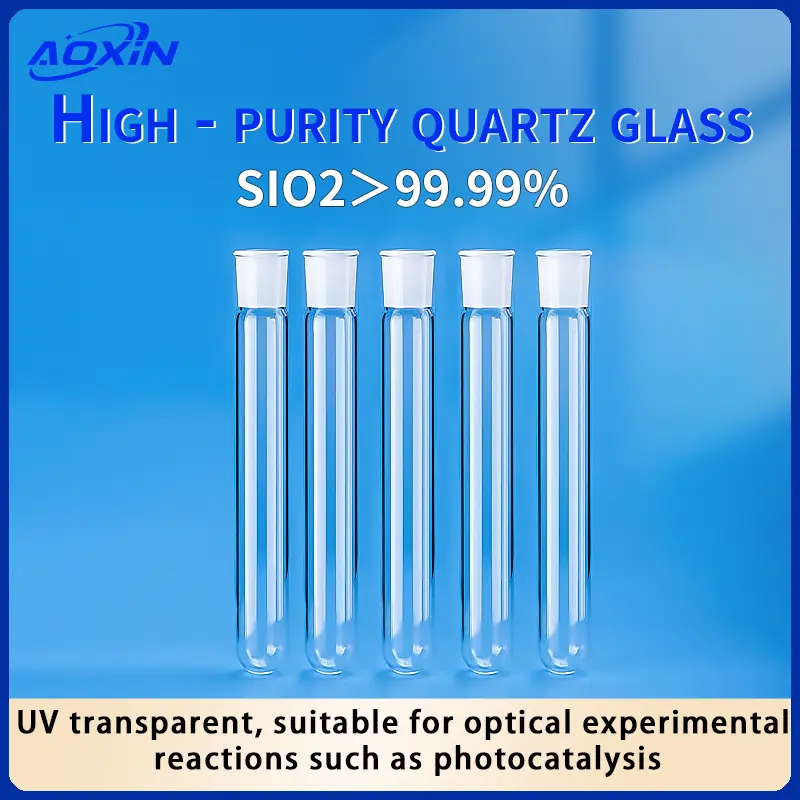

- Superior Optical Properties: Excellent transparency across a broad spectrum, including UV light, making them ideal for observation and photochemical reactions (e.g., photocatalysis).

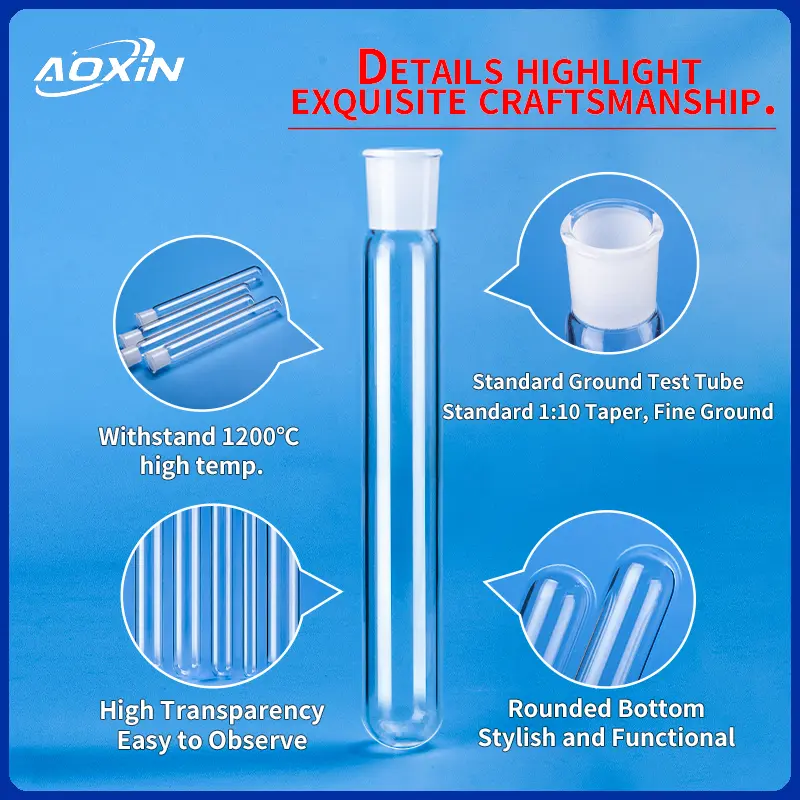

- Precision Craftsmanship: Featuring standard taper ground joints (1:10), finely ground surfaces, and functional rounded bottoms for even heating and ease of use.
- Chemical Inertness: Highly resistant to most acids, solvents, and other chemicals, ensuring longevity and preventing unwanted reactions.

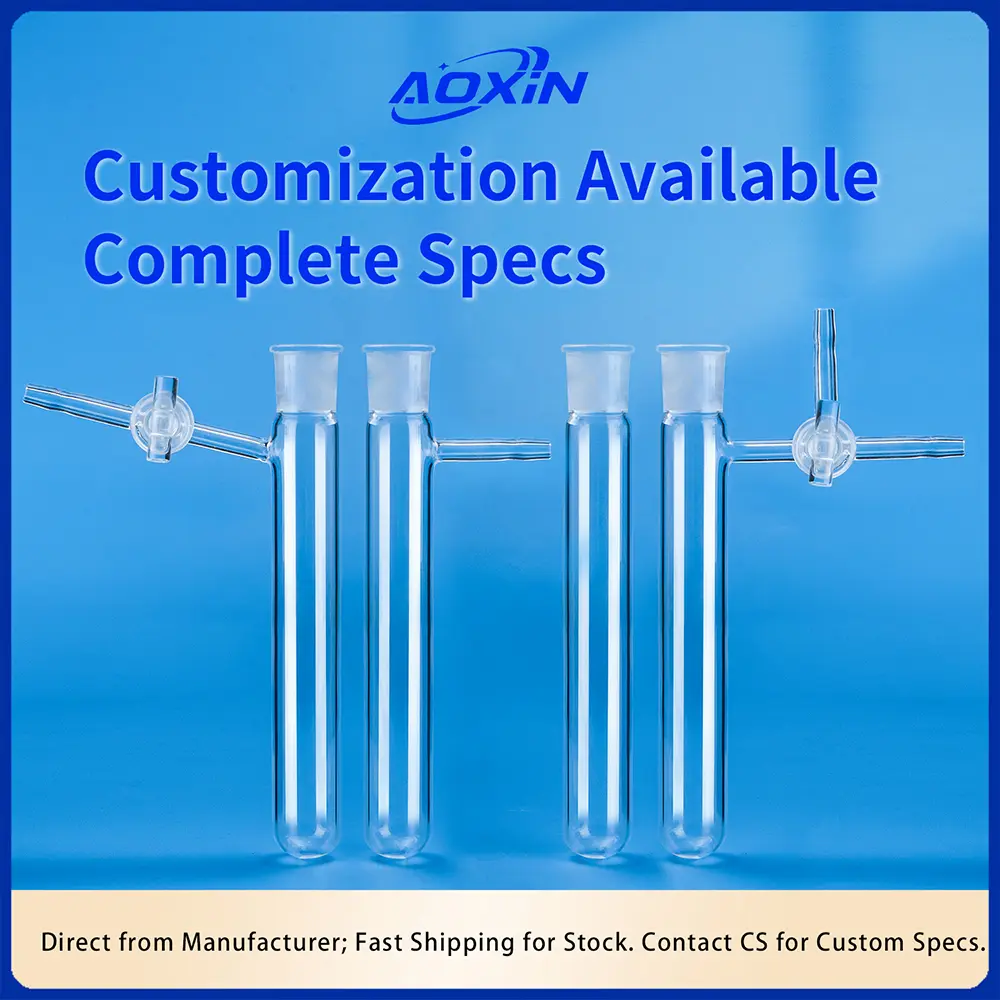

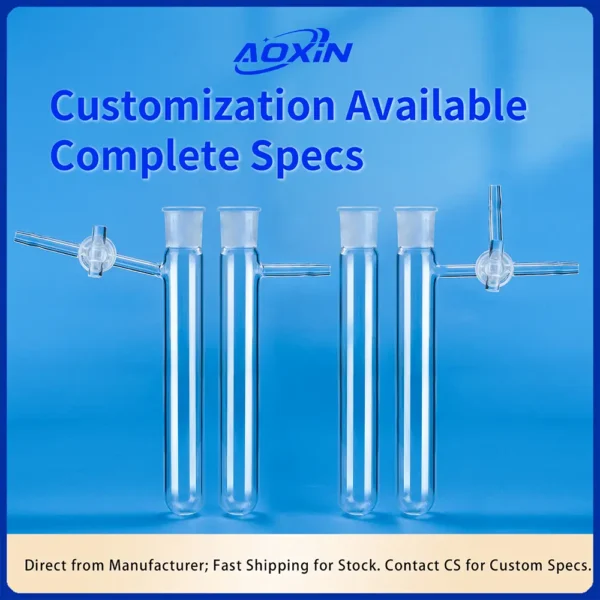

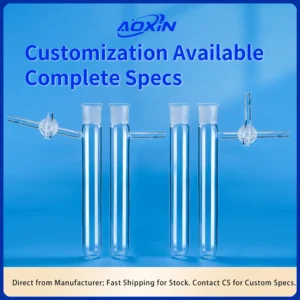

- Customization Capabilities: We offer complete customization in terms of dimensions, joint types, and other specifications to perfectly match your setup.
- Direct-from-Manufacturer Value: Benefit from competitive pricing and responsive service by sourcing directly from us, Aoxin Quartz.
