1200°C High Temp Resistant
High Transmittance
Acid/Alkali Resistant
Complete Specifications

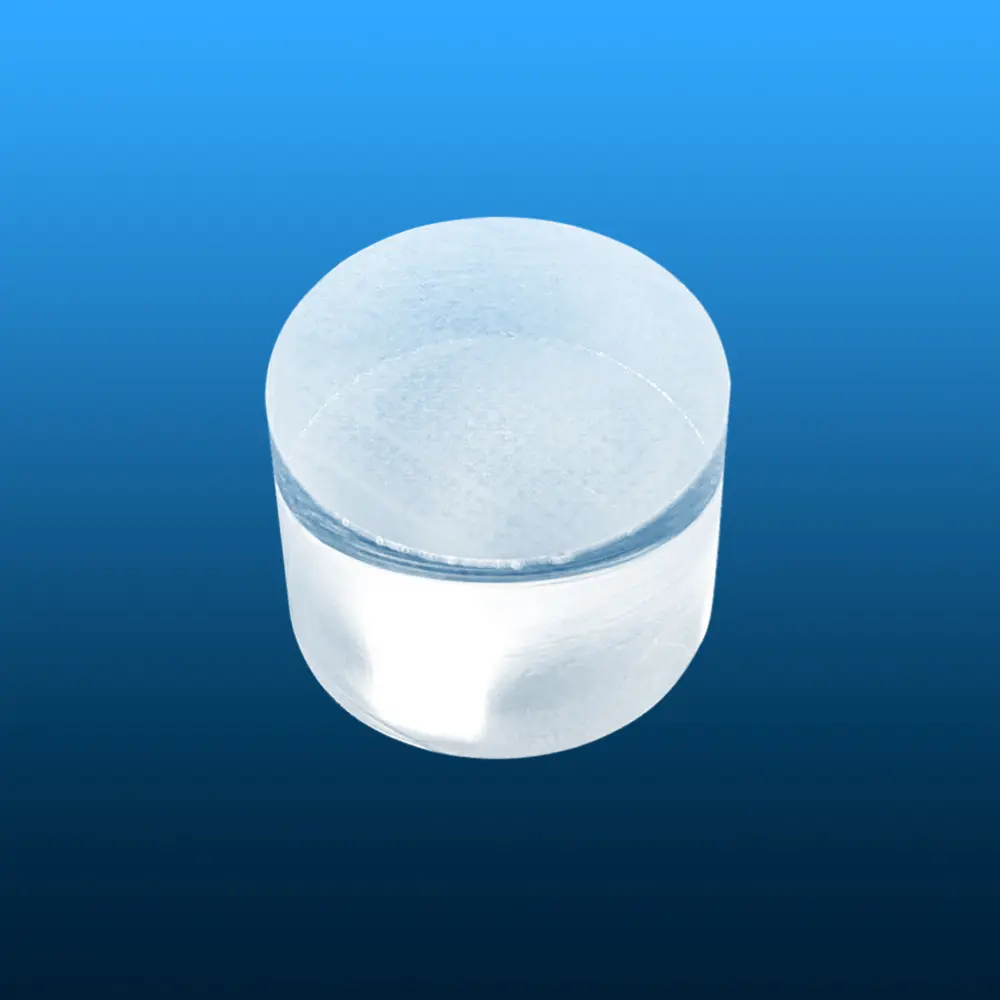

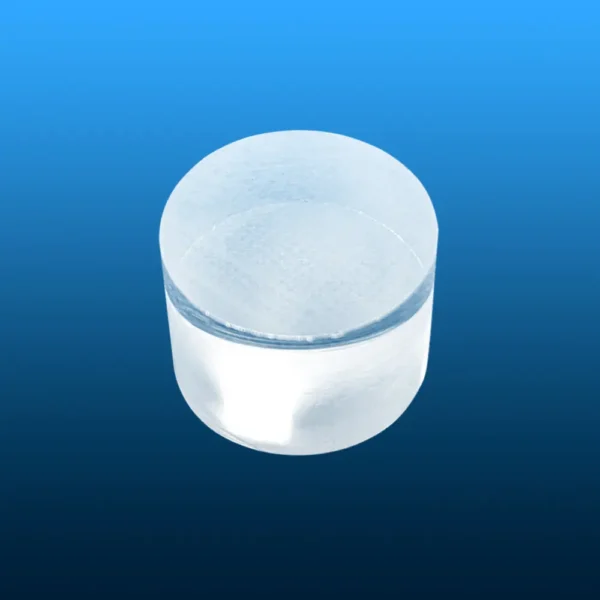

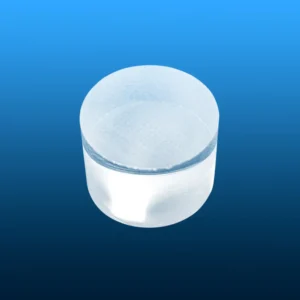

Aoxin Quartz offers the QTB15 Quartz Block, a specialized tool designed for the heat sealing of 20mm outer diameter quartz tubes. This precision-machined quartz block acts as a forming die, enabling a clean and reliable flame seal when preparing quartz ampoules or other sealed quartz vessels. Crafted from high-quality fused quartz, it offers excellent high-temperature resistance, non-stick properties, and durability for consistent sealing results. Its specific dimensions (15mm OD, 11mm Height) are optimized for working with 20mm OD quartz tubing.
- Product Name : Quartz Block for Heat Sealing (20mm OD Tubes)
- Material : 99.99 % Purity Quartz
- Work Temperature ：~1200℃
- Soften point : ~1730℃
- Hardness : 5.5 – 6.5 Mohs’ Scale 570 KHN 100
- Tensile Strength : 4.8×107 Pa (N/mm2) (7000 psi)
- Compression Strength : >1.1×109 Pa (160,000 psi)
Features

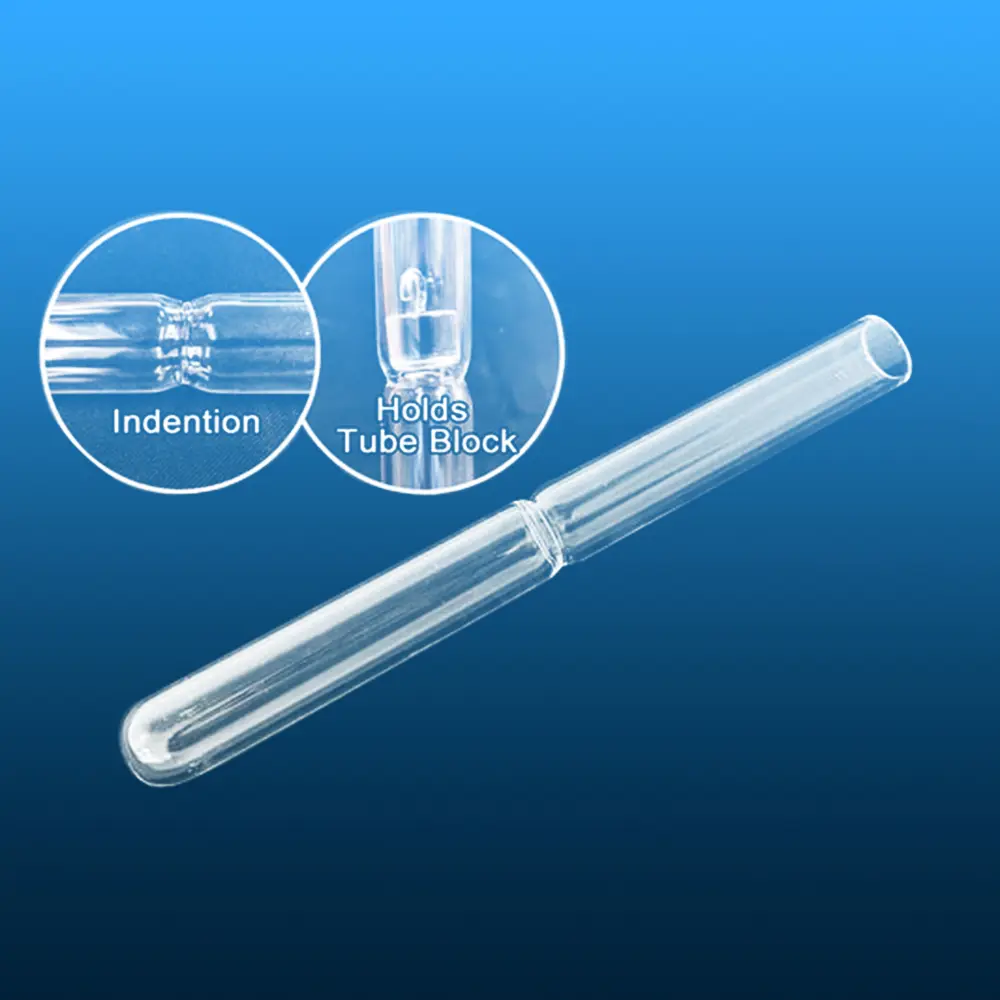

- Optimized for 20mm OD Tubes: Specifically designed and dimensioned to facilitate the effective heat sealing of quartz tubes with a 20mm outer diameter.
- High-Quality Quartz Material: Ensures superior performance at high flame-working temperatures without deforming or contaminating the tube being sealed.
- Clean and Uniform Seals: Helps to create a neat, consistent, and strong seal on quartz tubes, improving the reliability of ampoules or sealed vessels.
- Non-Stick Surface: Fused quartz offers good resistance to sticking when in contact with softened quartz, facilitating a clean release after sealing.
- Durable and Reusable: Designed for multiple sealing operations, providing a cost-effective tool for laboratory or production use (though wear is expected over time with high-temperature tools).
- Thermal Shock Resistant: Capable of withstanding the rapid temperature changes inherent in flame sealing processes.

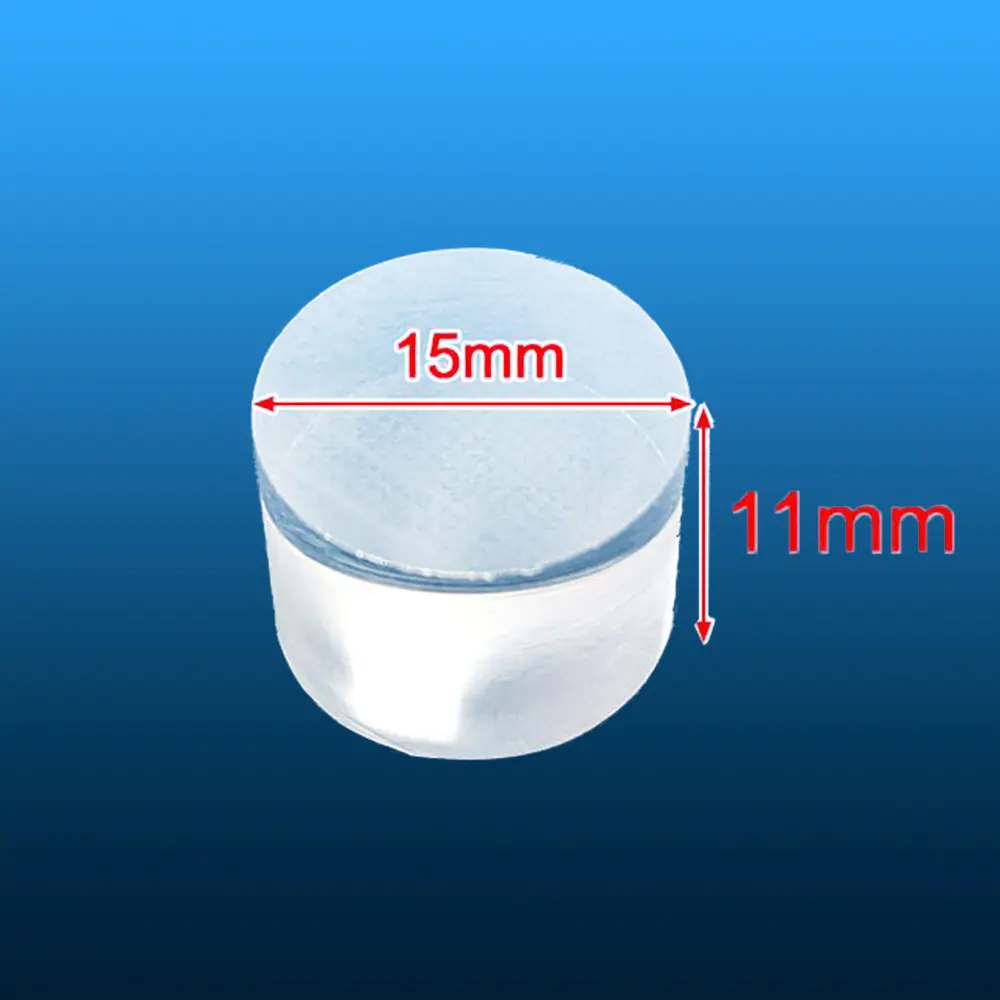

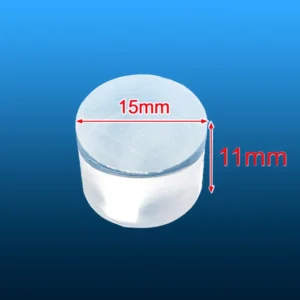

- Precision Machined: Ensures accurate dimensions (15mm OD, 11mm Height) for repeatable sealing performance.
