1200°C High Temp Resistant
High Transmittance
Acid/Alkali Resistant
Complete Specifications

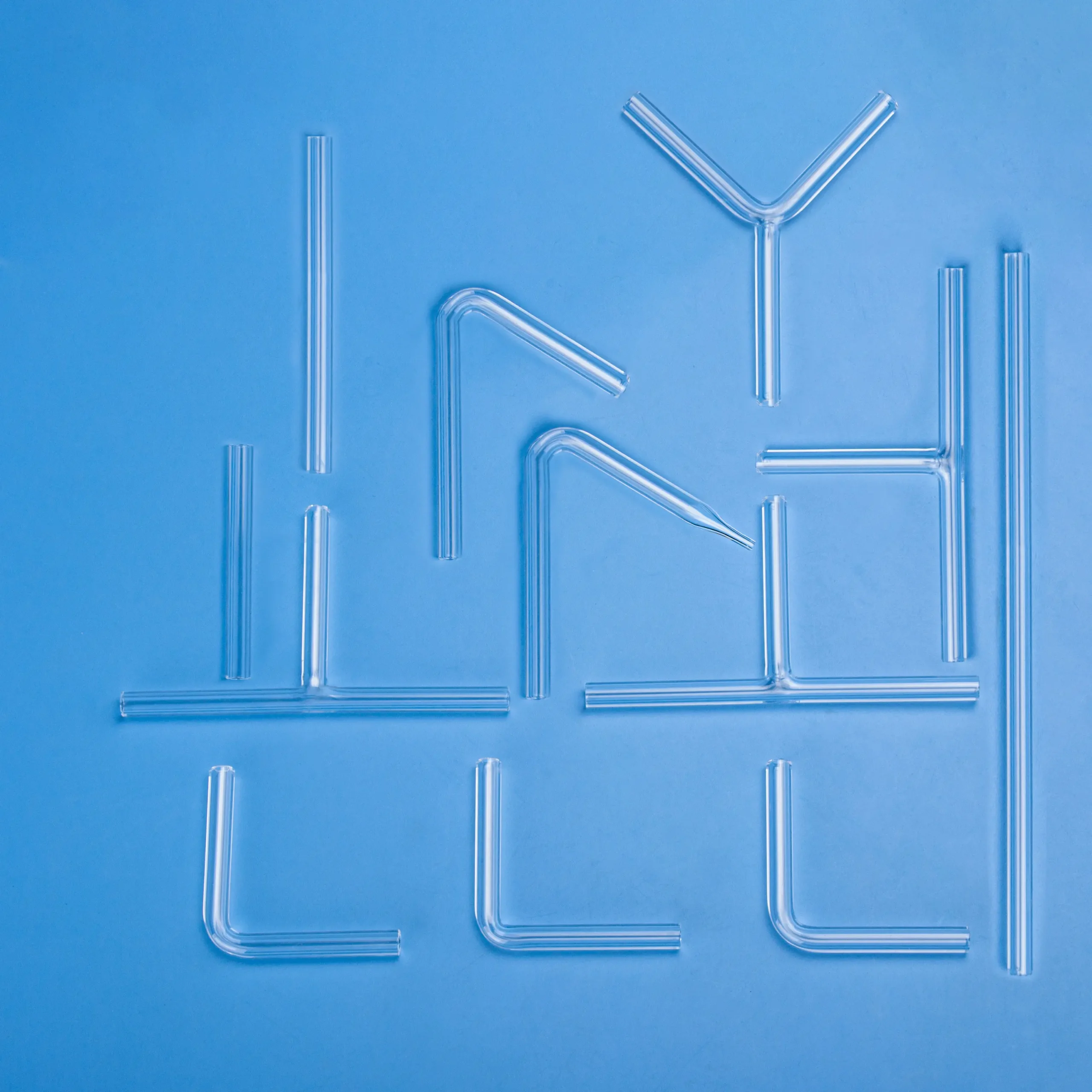

Aoxin Quartz specializes in the custom fabrication of high-purity Quartz Tubes and Glassware for a wide range of laboratory applications. From simple straight tubes to complex configurations like L-bends, U-bends, T-pieces, and Y-connectors, we manufacture components tailored to your precise experimental setups. Our laboratory quartz tubes are crafted from high-purity fused quartz (SiO2 > 99.99%), offering exceptional thermal stability (up to 1200°C), superior chemical resistance, and excellent optical clarity. With precision welding, smooth rounded mouths, and options for various custom features, we deliver reliable and high-performance quartz solutions for your research and analytical needs.
- Product Name : Custom Fabricated Laboratory Quartz Tubes
- Material : 99.99 % Purity Quartz
- Work Temperature ：~1200℃
- Soften point : ~1730℃
- Hardness : 5.5 – 6.5 Mohs’ Scale 570 KHN 100
- Tensile Strength : 4.8×107 Pa (N/mm2) (7000 psi)
- Compression Strength : >1.1×109 Pa (160,000 psi)
Features
- ailored to Your Experiment: Fully customizable shapes, bends, and connections (L, U, T, Y, etc.) to integrate seamlessly into your specific apparatus and experimental designs.
- Exceptional Purity & Inertness (SiO2 > 99.99%): Minimizes contamination and unwanted reactions, ensuring the integrity of your samples and results.
- High Thermal & Chemical Resistance: Withstands high temperatures up to 1200°C and resists corrosion from most acids, alkalis, and solvents, ideal for demanding laboratory procedures.

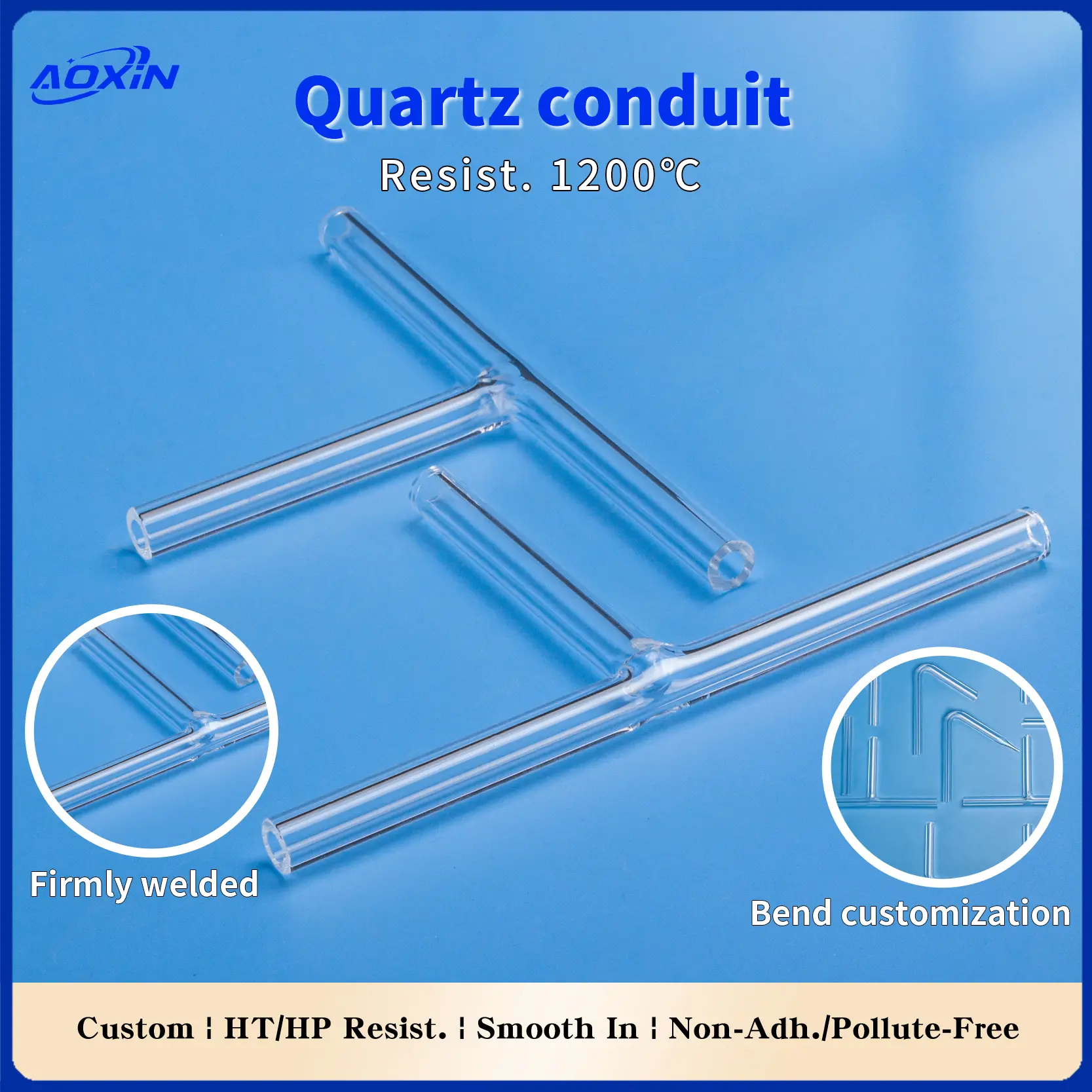

- Precision Fabrication: Expertly welded joints are strong and leak-free (“Solid Weld, No Bubbles/Striations”). Tube ends are smoothly finished for safety and optimal sealing.
- Excellent Optical Clarity: High transmittance allows for clear observation of processes or use in photochemical experiments.
- Versatile Laboratory Applications: Suitable for fluid and gas transfer, reaction vessels, sample handling, furnace process tubes, and components for custom scientific instruments.
- Certified Quality & Reliability: Manufactured under strict quality control with CE, ISO, and other certifications, ensuring dependable performance.”
